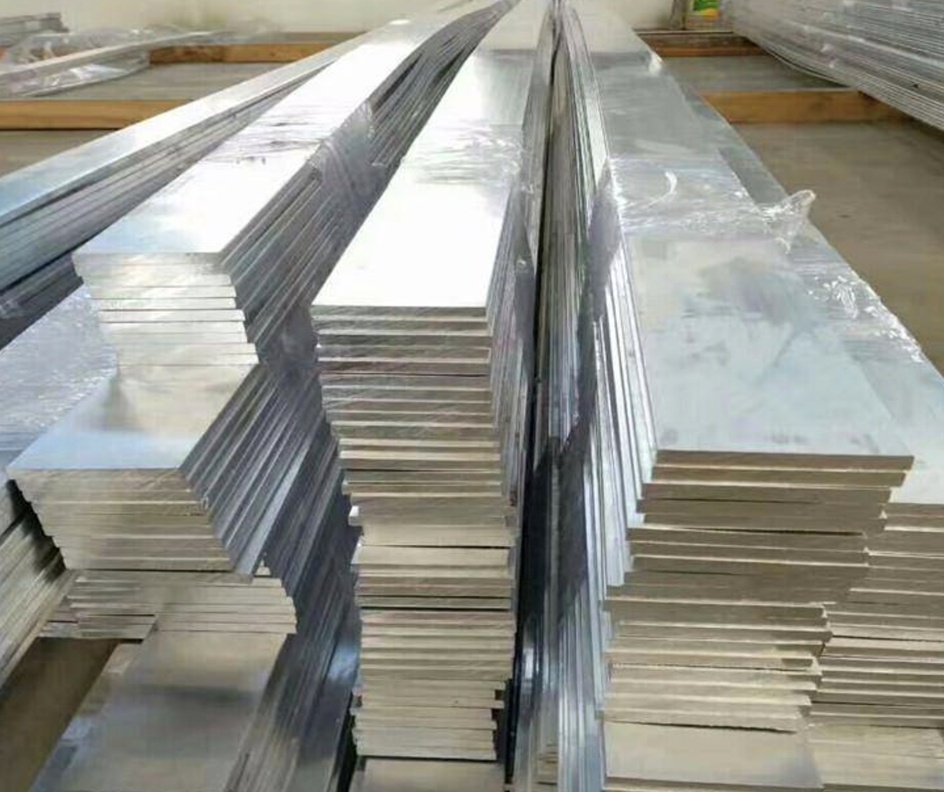

AW 6082 T6 Flat Bar Manufacturer
Aluminium flat bar is an extrusion simple profile, just like an aluminium rectangular bar or a flat aluminium strip. It is a length of aluminium with a rectangular cross-section that varies in dimensions.
Our Alu Flat bar can be made of EN AW 6082-T6 Grade according to EN 573-3. Tolerances according to EN 755-1, EN 755-2 and EN 755-5.
Aluminum Flat Bars Character
Lightweight – 1/3 the weight of steel
Corrosion-resistant – Ideal for marine & outdoor use
High strength-to-weight ratio – Excellent for structural applications
Easily machinable & weldable – Works well with various fabrication techniques
Recyclable – Environmentally friendly
Alu flar bar can be used for below application
Aerospace – Aircraft structures, brackets
Marine Industry – Boat hulls, docks, offshore structures
Construction – Window frames, support beams, handrails
Automotive & Transportation – Truck beds, trailers
Electrical – Bus bars, conductors
Why 6082 T6 Flar bar?
6082 T6 is the most popular grade for ship building,it is a high-strength, corrosion-resistant alloy commonly used in structural applications. It offers excellent mechanical properties with good weldability.
Chemical composition % of grade ENAW-AlSi1MgMn ( ENAW-6082 )
| Fe | Si | Mn | Cr | Ti | Cu | Mg | Zn | Others | – |
| max 0.5 | 0.7 – 1.3 | 0.4 – 1 | max 0.25 | max 0.1 | max 0.1 | 0.6 – 1.2 | max 0.2 | each 0.05; total 0.15 | Al – remainder |
Mechanical properties of grade ENAW-AlSi1MgMn ( ENAW-6082 )
| Rm – Tensile strength (MPa) (T6) | 270-310 |
| Rp0.2 0.2% proof strength (MPa) (T6) | 200-260 |
Standard applied for Aluminum Flar bar
| ASTM B221 | Standard for extruded aluminum bars |
| ASTM B209 | Covers aluminum sheet, plate, and bar |
Equivalent grades of grade ENAW-AlSi1MgMn ( EN AW-6082 )
| EU EN | Germany DIN,WNr |
| ENAW-AlSi1MgMn | 3.2315AlMgSi1 |
Our Stock size for AW-6082 T6 Flat bar,stockist
| Size（mm) | grade |
| LP25*3 | 6082-T6 |
| LP30*3 | 6082-T6 |
| LP40*3 | 6082-T6 |
| LP16*4 | 6082-T6 |
| LP25*4 | 6082-T6 |
| LP30*4 | 6082-T6 |
| BL40*4 | 6082-T6 |
| BL50*4 | 6082-T6 |
| LP60*4 | 6082-T6 |
| LP60*4 | 6082-T6 |
| LP60*4 | 6082-T6 |
| LP80*4 | 6082-T6 |
| BL50.8*4.5 | 6082-T6 |
| LP25*5 | 6082-T6 |
| LP30*5 | 6082-T6 |
| BL40*5 | 6082-T6 |
| BL50*5 | 6082-T6 |
| LP130*5 | 6082-T6 |
| LP50*6 | 6082-T6 |
| LP50.8*6 | 6082-T6 |
| LP60*6 | 6082-T6 |
| LP80*6 | 6082-T6 |
| LP100*6 | 6082-T6 |
| LP60*8 | 6082-T6 |
| LP80*8 | 6082-T6 |
| LP120*8 | 6082-T6 |
| LP150*8 | 6082-T6 |
| LP180*8 | 6082-T6 |
| LP75*10 | 6082-T6 |
| LP80*10 | 6082-T6 |
| LP100*10 | 6082-T6 |
| LP215*10 | 6082-T6 |
| LP250*10 | 6082-T6 |
| LP130*12 | 6082-T6 |
| LP150*14 | 6082-T6 |
| BL132*15 | 6082-T6 |
| BL125*20 | 6082-T6 |
