ASTM A182 F44 flange Manufacturer
ASTM A182 F44 is a super austenitic stainless steel, also known as UNS S31254 or 254 SMO. This grade contains high levels of molybdenum (6%), nickel, and chromium, offering outstanding resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking.
With its high content of chromium (19.5-20.5%), nickel (17.5-18.5%), molybdenum (6.0-7.0%), and nitrogen (0.18-0.25%), this grade achieves a Pitting Resistance Equivalent (PREn) value of 42-44, ensuring exceptional resistance to pitting corrosion and crevice corrosion.
Equivalent grade of A182 F44/UNS S31254
A fully austenitic alloy with excellent corrosion resistance in a wide variety of aggressive, aqueous environments
| UNS | EN | ASTM | Other |
|---|---|---|---|
| S31254 | 1.4547 (X1CrNiMoN20-18-7) | F44 | 254 SMO |

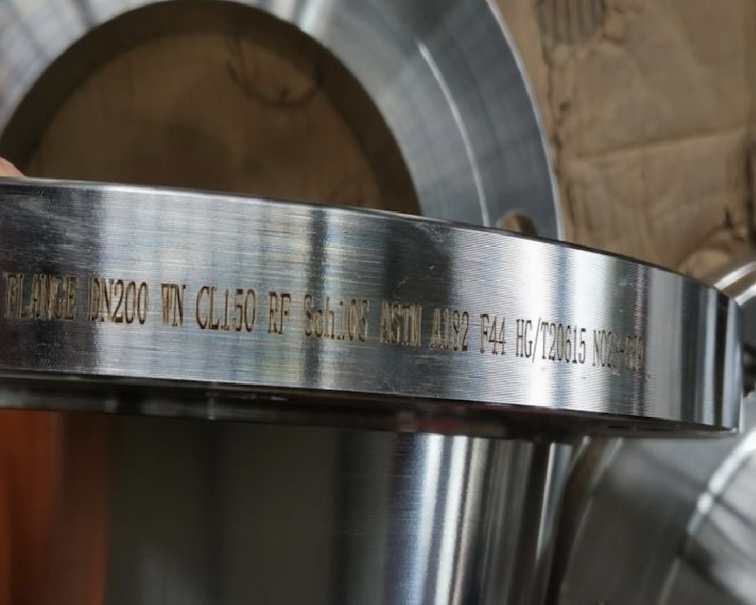

ASTM A182 F44 flanges are forged components manufactured from high-alloy austenitic stainless steel known as UNS S31254 (6Mo stainless steel)
A182 F44 Chemical Composition (UNS S31254)
C | Cr | Cu | Fe | Mo | Mn | N | Ni | P | S | Si | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | – | 19.5 | 0.5 | Balance | 6.0 | – | 0.18 | 17.5 | – | – | – |
| Max | 0.02 | 20.5 | 1.0 | 6.5 | 1.0 | 0.22 | 18.5 | 0.030 | 0.010 | 0.8 |
UNS S31254 A182 F44 Mechanical Properties
| Mechanical (room temperature) | UTS | 0.2% Proof Strength | Elongation | Reduction in Area | Hardness |
| Min | Min | Min | Max | ||
| 650-850 Mpa | 300 Mpa | 35.00% | 50.00% | 260 HB |
Physical Properties
| Property | Value |
|---|---|
| Density | 8.0 kg/dm³ |
| Modulus of Elasticity at 20°C | 195 GPa |
| Mean Coefficient of Thermal Expansion (20-100°C) | 16.5 × 10⁻⁶ K⁻¹ |
| Thermal Conductivity at 20°C | 14 W·m⁻¹·K⁻¹ |
| Specific Thermal Capacity at 20°C | 500 J·kg⁻¹·K⁻¹ |
| Electrical Resistivity at 20°C | 0.85 Ω·mm²·m⁻¹ |
ASTM A182 F44 Flanges Specification
Material: ASTM A182 F44 / UNS S31254 (6Mo)

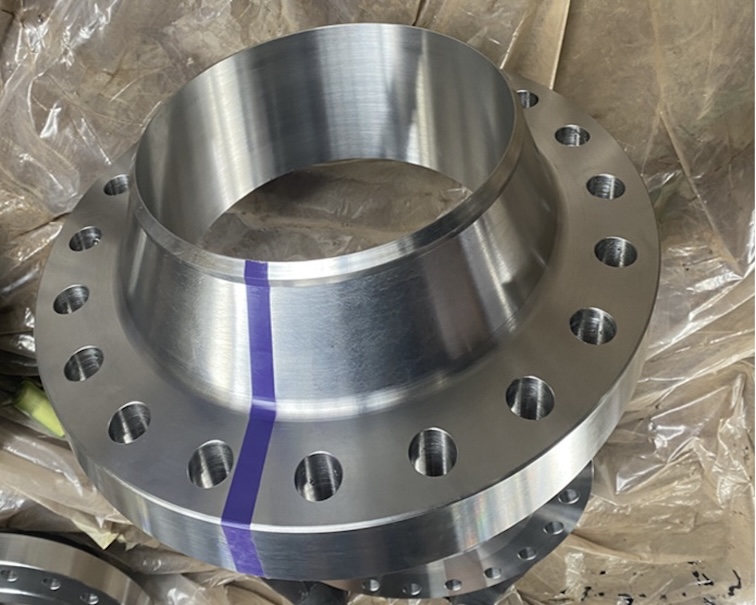

Type: Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint, Orifice
Sizes: 1/2” to 60 ” or custom as per client specifications
Pressure Ratings: Class 150 to 2500, PN6 to PN400
Standards: ASME B16.5, B16.47, EN 1092-1, GOST, DIN
Why S31254 Flages?
Superior Corrosion Resistance
F44 flanges offer excellent resistance to seawater, acidic media, and high chloride applications. They outperform standard stainless steels like 316L in environments where localized corrosion is a concern.
Applications of F44 materials
- Offshore platforms and subsea systems
- Desalination plants
- Chemical processing
- Pulp and paper industry
- Marine engineering
