ASTM A234 WP11 CL1 CL2 CL3 Pipe Fittings ASME B16.9 Manufacturer & Exporter
We are a trusted manufacturer, stockist, and global exporter of ASTM A234 WP11 alloy steel elbow pipe fittings, available in Class 1 (CL1), Class 2 (CL2), and Class 3 (CL3). These elbows,Tee,Reducer,Caps are designed in accordance with ASME B16.9 and MSS-SP-75, ensuring superior performance in high-temperature, high-pressure piping systems.
ASTM A234 WP11 is a Cr-Mo alloy steel grade (1¼Cr–½Mo) used in butt-welded pipe fittings such as elbows, tees, reducers, and caps. It is widely applied in high-temperature and high-pressure services such as boilers, heat exchangers, power plants, and refineries.

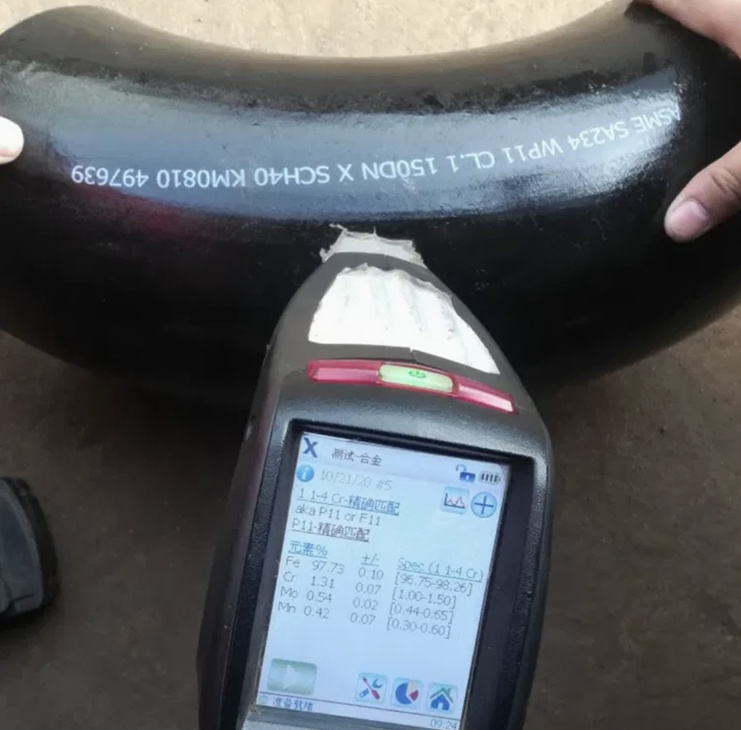

Key Features of ASTM A234 WP11 Elbows
- Manufactured from Cr-Mo alloy steel (1¼Cr–½Mo)
- Available in 45°, 90°, and 180° bends (long radius & short radius)
- High resistance to creep, oxidation, and thermal stress
- Suitable for welding and seamless piping connections
- Supplied in CL1, CL2, and CL3 as per project requirements
ASTM A234 WP11 Pipe Fittings Specifications
- Standard: ASTM A234 / ASME SA234
- Grade: WP11 (Class 1, Class 2, Class 3)
- Type: Seamless, Welded, Butt Weld Fittings
- Size Range: ½” to 48” NB (DN 15 – DN 1200)
- Dimensions: ASME B16.9, MSS-SP-75
- Forms: Elbows (45°, 90°, 180°), Reducers, Tees, Caps, Crosses, Stub Ends
- Pressure Rating: SCH 10 to SCH 160, XXS
- Certification: EN 10204 3.1 / 3.2, NACE MR0175, ISO 9001
ASTM A234 WP11 Chemical composition
| Grade | ASTM A234 WP11 Class 1 Fittings | ASTM A234 WP11 Class 2 Fittings | ASTM A234 WP11 Class 3 Fittings |
| Carbon | 0.05–0.15 | 0.05–0.15 | 0.05–0.20 |
| Manganese | 0.30–0.60 | 0.30–0.60 | 0.30–0.80 |
| Phosporus | 0.03 | 0.03 | 0.04 |
| Sulfur | 0.03 | 0.03 | 0.04 |
| Silicon | 0.50–1.00 | 0.50–1.00 | 0.50–1.00 |
| Chromium | 1.00–1.50 | 1.00–1.50 | 1.00–1.50 |
| Molybdenum | 0.44–0.65 | 0.44–0.65 | 0.44–0.65 |
ASTM A234 WP11 CL1 CL2 CL3 Mechanical Property
| Tensile Requirements | ASTM A234 WP11 Class 1 Fittings | ASTM A234 WP11 Class 2 Fitting | ASTM A234 WP11 Class 3 Fittings |
| Tensile Strength, min. (minumum), ksi[MPa] | 60 | 70 | 75-100 |
| (0.2% offset or 0.5% extension-under-load) | 415 | 485 | 520 |
| Yield Strength, min. (minumum), ksi[MPa] | 30 | 32 | 45 |
| [205] | [240] | [310] |
Applications of ASTM A234 WP11 Alloy Steel Elbows
- Power Generation Plants – Boilers, steam piping, turbine lines
- Oil & Gas Refineries – Cracking units, hydroprocessing units
- Petrochemical & Chemical Industries – High-temperature reactors, heat exchangers
- Fertilizer Plants – Ammonia, urea processing systems
- Nuclear & Thermal Plants – High-pressure steam lines
Heat Treatment Requirements for ASTM A234 WP11
Depending on the class (CL1, CL2, CL3), ASTM A234 WP11 fittings shall undergo proper heat treatment:
- Class 1 (CL1): Normally supplied in the annealed condition
- Class 2 (CL2): Supplied in the normalized and tempered condition
- Class 3 (CL3): Supplied in the quenched and tempered condition
Heat treatment temperatures (typical ranges):
- Normalizing: 900 – 950 °C, followed by air cooling
- Tempering: 650 – 750 °C after normalizing or quenching
- Annealing: 870 – 950 °C, followed by controlled cooling
Hardness Requirements of ASTM 234 WP11
- Maximum Hardness: 197 HB (Brinell Hardness)
- For CL2 and CL3, hardness control is critical to ensure creep and high-temperature service reliability.
Non-Destructive Examination (NDE)
As per ASTM A234 / ASME B16.9 / MSS-SP-75, NDE requirements can include:
- Visual Inspection (VT): 100% surface examination for defects
- Magnetic Particle Testing (MT): For detecting surface cracks in ferritic fittings
- Liquid Penetrant Testing (PT): Alternative to MT for surface flaws
- Ultrasonic Testing (UT): internal defect detection
- Radiographic Testing (RT): On weld seams of welded fittings
Related Products
ASTM A182 F11 Weld Neck Flanges
ASTM A335 P11 Seamless Steel Pipe
As a leading manufacturer and exporter of ASTM A234 WP11 CL1 / CL2 / CL3 elbows, we deliver butt weld fittings with mill test certificates (MTC), third-party inspection reports, and global approvals. Our fittings comply with ASTM, ASME, DIN, EN, and ISO standards, making them suitable for critical applications worldwide.
