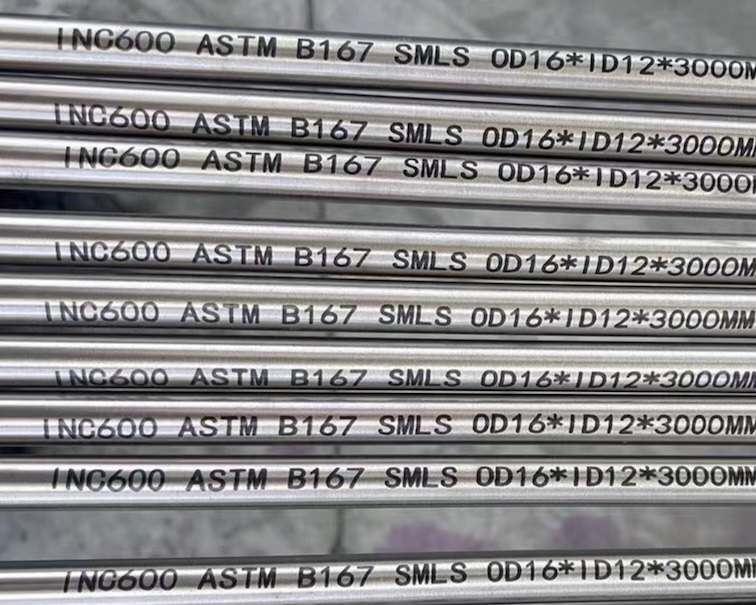

ASTM B167 UNS N06600 Seamless Pipe Manufacturer
ASTM B167 covers seamless pipes and tubes manufactured from Nickel-Chromium-Iron alloy (Inconel 600, UNS N06600). These pipes and tubes are widely used in high-temperature and corrosion-resistant applications due to their exceptional metallurgical stability and mechanical strength.
What Is ASTM B167?
ASTM B167 is the standard specification for Nickel-Chromium-Iron alloy (UNS N06600) seamless pipes and tubes intended for high-temperature or corrosive environment
It is th Standard Specification for Nickel-Chromium-Iron Alloys (UNS N06600, N06601, N06603, N06690, N06693, N06025, N06045, and N06696), Nickel-Chromium-Cobalt-Molybdenum Alloy (UNS N06617), and Nickel-Iron-Chromium-Tungsten Alloy (UNS N06674) Seamless Pipe and Tube
📄 Download ASTM B167 Standard in PDF
A nickel-chromium alloy with good oxidation resistance at high temperatures and resistance to chloride-ion stress-corrosion cracking, corrosion by high-purity water and caustic corrosion. Used for furnace components, chemical and food processing, nuclear engineering and sparking electrodes.
Chemical Composition (UNS N06600)
| Alloy | % | Ni | Cr | Fe | C | Mn | Si | Cu | P | S |
| ASTM B564 N06600 | Min. | 72.0 | 14.0 | 6.0 | ||||||
| Max. | 17.0 | 10.0 | 0.15 | 1.0 | 0.5 | 0.5 | 0.015 |
Alloy 600 Physical properties:
| Density / Specific Gravity | 8.47 kg/m³ |
| Melting Point | 1370-1425 ℃ |
Mechanical Properties (Room Temperature)
| Property | Requirement |
|---|---|
| Tensile Strength (min) | 550 MPa (80 ksi) |
| Yield Strength, 0.2% offset (min) | 205 MPa (30 ksi) |
| Elongation in 50 mm (2 in.) (min) | 30% |
Equivalent Grades of Inconel 600
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Manufacturing Process
- Type: Seamless
- Production: Cold or hot worked followed by annealing
- Form: Straight lengths or coiled tubes
- Size Range: 6 mm to 219 mm OD; custom thicknesses available
Test requirement for N06600 Seamless tube
| Test Type | Requirement |
|---|---|
| Tensile Test | Yield strength, tensile strength, elongation (at room temp) |
| Flattening Test | For pipe ovality and ductility |
| Hydrostatic Test | Optional (unless specified by purchaser) |
| Nondestructive Test | Eddy current or ultrasonic test |
| Visual | Dimension and surface |
Other product available of N06600 Nickel Alloy
ASTM B166 Roud Bars, rods, wires
ASTM B168 (Plates, sheets, strips)
ASTM B167 (Seamless pipes and tubes)
ASTM B564 (Forgings/flanges)
ASME SB-166, SB-168, SB-167, SB-564
