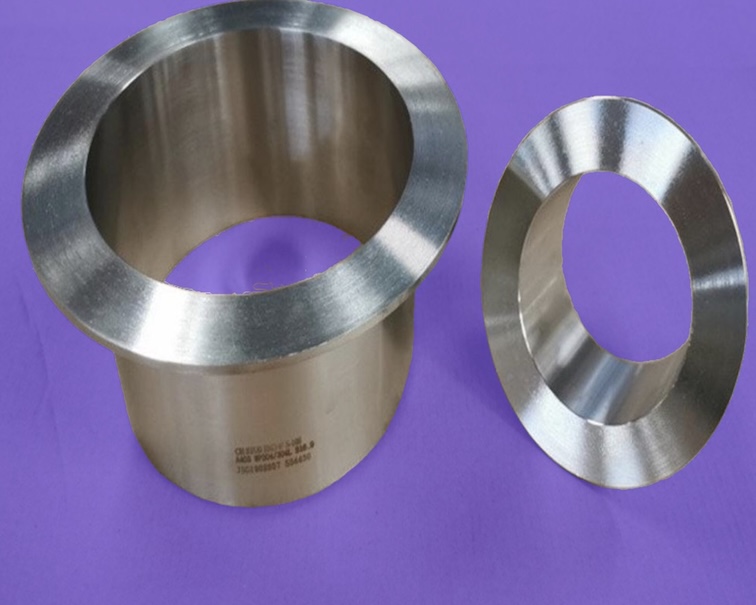

ASTM B366 Inconel 601 Stub End Manufacturer & Supplier
We are a trusted manufacturer and exporter of Inconel® 601 stub ends conforming to ASTM B366 standard. We supply both short pattern (Type B) and long pattern (Type A) stub ends for corrosive and high-temperature piping systems used in power generation, petrochemical, furnace, and thermal processing industries.
Our N06601 stub ends are precision-forged and machined to meet ASME B16.9 and MSS-SP-43 dimensional tolerances, ensuring a perfect match with lap joint flanges and stainless or nickel alloy pipes.
A Stub End is a type of pipe fitting used in piping systems to facilitate the connection of pipes to flanges. It is a short length of pipe with a flange welded onto one end, and the other end is designed for a butt weld connection to the pipe. Stub ends are commonly used in conjunction with lap joint flanges to create a more flexible and cost-effective alternative to traditional flange connections.
Inconel 601 Stub End Product Specifications
| Parameter | Specification |
|---|---|
| Standard | ASTM B366 |
| Material | Inconel® 601 (UNS N06601) |
| Type | Stub End (Type A / Type B) |
| Size Range | 1/2” to 24” (DN15 to DN600) |
| Schedule | SCH 10S to SCH 160 / XXS |
| Forming | Seamless or Welded |
| Dimensions | ASME B16.9 / MSS-SP-43 |
| End Type | Beveled Ends (ASME B16.25) |
| Surface Finish | Machined, pickled or bright finish |
| Applications | High-temp exhaust ducting, waste incineration, heat treatment plants |
Material Inconel 601 (UNS N06601)
Inconel 601 is a nickel-chromium alloy used for applications that require resistance to corrosion and heat. This nickel alloy stands out due to its resistance
Typical Chemical Composition (%) of inconel 601
| Element | Ni | Cr | Fe | Al | C | Mn | Si | S |
|---|---|---|---|---|---|---|---|---|
| Content | 58 | 21-25 | Remainder | 1-1.7 | ≤0.10 | ≤1.0 | ≤0.5 | ≤0.015 |
Why Choose Inconel 601 Stub Ends?
- In-house forging, heat treatment, and precision machining
- 100% PMI tested, UT/RT/NDT available
- ISO 9001:2015 certified manufacturing
- Compatible with Alloy 601 pipes and Inconel flanges
- Fast global delivery (FOB, CIF, DDU available)
Documentation Available
- Mill Test Certificate (EN 10204 3.1)
- Heat Treatment Record
- PMI & Dimensional Inspection Reports
- NACE MR0175 Compliance (on request)
