Butt Weld Elbows Archives

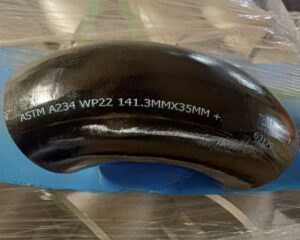

ASTM-A234-WP22-Elbow-Tee-Reducer-Caps-Pipe-fittings-ASME-B16.9

ASTM A234 WP22 Elbow Tee Reducer Caps Pipe fittings specification

ASTM A234 WP22 pipe fittings are alloy steel butt-weld fittings designed for high-temperature and high-pressure service in power plants, boilers, heaters, petrochemical units, and refinery piping systems.Grade WP22 is a chromium-molybdenum alloy steel (2¼Cr-1Mo), offering excellent resistance to high-temperature creep, oxidation, and thermal fatigue. ASTM A234 WP22 pipe fittings, including elbows, tees, reducers, and caps, […]

ASTM A234 WP22 Elbow Tee Reducer Caps Pipe fittings specification Read More »

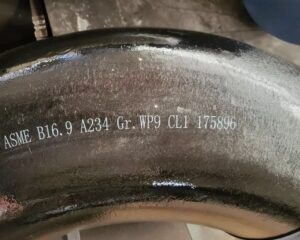

ASTM-A234-WP9-Elbow-butt-Weld-fitting-ASME-B16.9

ASTM A234 WP9 Elbow Pipe Fittings ASME B16.9

Butt Weld Elbows / ASTM A234 WP9 Elbow

We supply all sizes and schedules of WP9 elbows, including:
A234 WP9 45° Elbow (Short & Long Radius)
A234 WP9 90° Elbow (LR & SR)
A234 WP9 180° Return Bend
A234 WP9 Tee
A234 WP9 Reducer
Available wall thickness: SCH 40, SCH 80, SCH 160, XXS
Dimensions: DN15–DN1200 / ½” to 48”

ASTM A234 WP9 Elbow Pipe Fittings ASME B16.9 Read More »

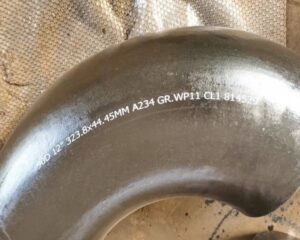

ASTM A234 WP11 Elbow ASME B16.9 LR 90DEG

ASTM A234 WP11 CL1 CL2 CL3 Elbow Pipe Fittings ASME B16.9

Butt Weld Elbows / ASTM A234 WP11 Elbows

ASTM A234 WP11 Pipe Fittings Specifications
Standard: ASTM A234 / ASME SA234
Grade: WP11 (Class 1, Class 2, Class 3)
Size Range: ½” to 48” NB (DN 15 – DN 1200)
Dimensions: ASME B16.9, MSS-SP-75
Forms: Elbows (45°, 90°, 180°), Reducers, Tees, Caps, Crosses, Stub Ends

ASTM A234 WP11 CL1 CL2 CL3 Elbow Pipe Fittings ASME B16.9 Read More »

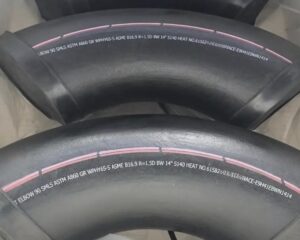

ASTM-A860-WPHY65-Elbow-LR-90deg-ASME-B16.9

ASTM A860 WPHY 65 Pipe Fittings Elbow Tee Reducer Caps Specification

Butt Weld Elbows / ASTM A860 WPHY 65 Pipe fittings

ASTM A860 WPHY 65 Pipe Fittings
Products:elbows, tees, reducers, caps, and crosses
Outer Diameters: 1/2” to 14” in ASME B16.9, 14” to 48” in MSS-SP-75
Wall Thickness Schedule: SCH 10, SCH 40, SCH 160 comply with ASME B16.9
Manufacturing Standards: ASME B16.9, ASME B16.28, MSS-SP-75

ASTM A860 WPHY 65 Pipe Fittings Elbow Tee Reducer Caps Specification Read More »

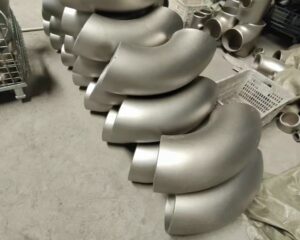

EN-10253-4-Stainless-steel-Butt-Weld-Elbow

EN 10253-4 TYPE A TYPE B Elbow 45 90Deg

Butt Weld Elbows / EN 10253-4 Elbows

EN 10253-4 elbow is a curved pipe fitting that changes the direction of flow in a pipeline.
45° and 90° standard angles
Long radius (LR) R-3D and short radius (SR) R-2D types

EN 10253-4 TYPE A TYPE B Elbow 45 90Deg Read More »

EN-10253-4-Stainless-steel-Butt-Weld-Fittings

EN 10253-4 Stainless Steel Butt Welded Fittings

Butt Weld Caps, Butt Weld Elbows, Butt Weld Reducer, Butt Weld Tee

EN 10253-4 European Standard specifies the technical delivery requirements for seamless and welded butt-welding fittings (elbows, concentric and eccentric reducers, equal and reducing tees, caps) made of austenitic and austenitic-ferritic (duplex) stainless steel

EN 10253-4 Stainless Steel Butt Welded Fittings Read More »

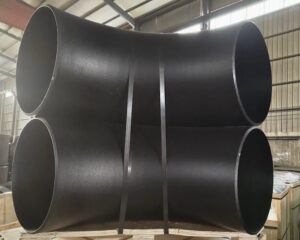

EN 10253-2 type A & type B Butt Weld Elbow 2D 3D

Butt Weld Elbows / EN 10253-2 Butt weld elbows

Our elbows are manufactured according to the European standard EN 10253-2,
Standard: EN 10253-2
Type: 45° Elbow, 90° Elbow, 180° Return Bend
Manufacturing Process: Seamless / Welded
Size Range: DN15 – DN1200

EN 10253-2 type A & type B Butt Weld Elbow 2D 3D Read More »

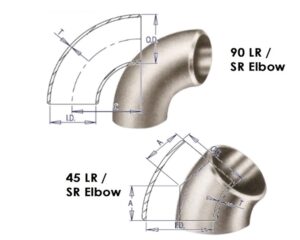

ASME B16.9 Butt Weld Long Short Radius Elbow 90deg 45deg

ASME B16.9 Butt Weld Long Radius Elbows Short Radius Elbow 90deg 45deg

Butt Weld Elbows / ASME B16.9 butt weld Elbow

Standard: ASME B16.9 – Factory-Made Wrought Buttwelding Fittings
Type: Butt Weld Elbows (Seamless & Welded)
Sizes: ½” NB to 48” NB (DN15 – DN1200)
Schedule/Thickness: SCH 10S, 20, 40, 80, 160, XXS

ASME B16.9 Butt Weld Long Radius Elbows Short Radius Elbow 90deg 45deg Read More »

ASTM B361 aluminum pipe fitting 6061 T6 Elbow ASME B16.9

Aluminum, Butt Weld Elbows / 6061 T6 Elbow, Aluminum 6061

6061 T6 Elbow ASME B16.9 Specification

ASME B16.9 – Standard for factory-made wrought steel butt-welding fittings

ASTM B361 – Standard specification for aluminum alloy pipe fittings

Nominal Pipe Size (NPS): Commonly available in sizes from 1/2″ to 48″.

ASTM B361 aluminum pipe fitting 6061 T6 Elbow ASME B16.9 Read More »

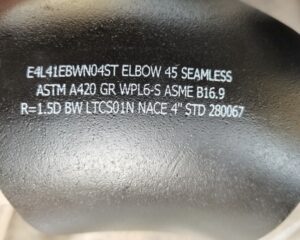

ASTM A420 WPL6 Elbow 90Deg LR SR ASME B16.9

Butt Weld Elbows / ASTM A420 WPL6 Elbow

We are a ASTM A420 WPL6 elbow manufacturer, supplying premium-grade butt-weld elbows for use in low-temperature pressure piping systems.
Our elbows are manufactured in accordance with ASME B16.9 and ASTM A420 standards, ensuring high strength, toughness, and leak-free connections in extreme cold conditions.

45 deg 90deg,180deg,ASTM A420 WPL6 Elbow long or short radius

ASTM A420 WPL6 Elbow 90Deg LR SR ASME B16.9 Read More »
