| Flange type (typ) as in DIN EN 1092-1 | |
| EN 1092-1 type 01 (Plate [slip-on] flanges for welding) | 13 (Hubbed threaded flanges) |
| EN 1092-1 type 02 (Loose plate flanges with weld-on plate collar) | 21 (Integral flanges) |
| EN 1092-1 type 04 (Loose plate flanges with weld-neck collar) | 32 (Weld-on plate collars) |
| EN 1092-1 type 05 (Blank [blind] flanges) | 33 (Lapped pipe ends) |
| EN 1092-1 type 11 (Weld-neck flanges) | EN 1092-1 34 (Weld-neck collars) |
| EN 1092-1 12 (Hubbed slip-on flanges for welding) | 36 (Pressed collar with long neck) |
| 37 (Pressed collar) | |
Europe countries mainly install flanges according to standard EN 1092-1 FLANGE STANDARD (forged Stainless or Steel Flanges). Similar to the ASME flange standard, the EN 1092-1 standard has the basic flange forms, such as weld neck flange, blind flange, lappedthe flange, threaded Flange (Thread ISO7-1 instead of NPT), weld on collar, pressed collars, and adapter flange such as flange coupling GD pressfittings. The different forms of flanges within the EN 1092-1 (European Norm Euronorm) is indicated within the flange name through the type.
| Design | According to EN 1092-1 Type | According to DIN |
|---|---|---|
| Weld Neck Flange | Type 11 | DIN 2627 – DIN 2638 |
| Blind Flange | Type 05 | DIN 2527 |
| Threaded Flange | Type 12 | DIN 2558, DIN 2565 – DIN 2569 |
| Flat Flange | Type 01 | DIN 2573, DIN 2576 |
| Lapped Flange | Type 02 & Type 04 | DIN 2641, DIN 2642, DIN 2655, DIN 2656 |
Similar to ASME flanges, EN1092-1 steel and stainless flanges, have several different versions of raised or none raised faces. According to the European form the seals are indicated by different form:
| Form: types of Contact Faces | DIN EN 1092-1 |
|---|---|
| Without Raised Face | Form A |
| Raised Face (Rz = 160 Mechanical Turned) | Form B1 |
| Raised Face ( Rz = 40 Mechanical Turned) | Form B1 |
| Raised Face (Rz = 16 Mechanical Turned) | Form B2 |
| Tongue According to DIN2512 | Form C |
| Groove According to DIN 2512 | Form D |
| Male According to DIN 2513 | Form E |
| Female According to DIN 2513 | Form F |
| Female According to DIN 2514 | Form G |
| Male According to DIN 2514 | Form H |
We are a trusted manufacturer and exporter of EN 10222-5 steel forgings, supplying forged components for pressure purposes, boilers, nuclear plants, and high-temperature applications. The EN 10222-5 standard specifies the technical delivery conditions for austenitic and austenitic-ferritic (duplex) stainless steel forgings,

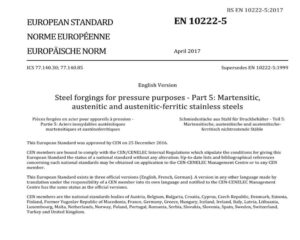

EN 10222-5 2017 Steel forgings Flanges for pressure purposes Read More »
We are a trusted manufacturer and supplier of EN 10222-2 11CrMo9-10 forgings, offering high-quality forged components for pressure vessels, boilers, and high-temperature applications. The material 11CrMo9-10 (1.7380) is a low alloy chromium-molybdenum steel, designed for use in environments requiring strength, creep resistance, and excellent toughness at elevated temperatures.

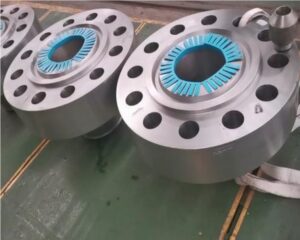

EN-10222-2 11CrMo9-10 Forged Flanges and Bars Read More »
We are a leading manufacturer and exporter of DIN stainless steel flanges in grades 1.4301 (AISI 304 / X5CrNi18-10) and 1.4307 (AISI 304L / X2CrNi18-9). Our flanges are designed according to DIN and EN 1092-1 standards, offering exceptional corrosion resistance, durability, and weldability for critical piping systems.
Material Grades: 1.4301 (304), 1.4307 (304L)
Standards: DIN / EN 1092-1, ISO,
Sizes: DN10 – DN2000
Pressure Ratings: PN6, PN10, PN16, PN25, PN40
DIN Flange Stainless steel 1.4301/1.4307 welding neck EN1092-1 Read More »
The EN 1092-1 Type 11 Weld Neck Flange made from P265GH (material number 1.0425) is widely used in pressure vessel and high-temperature piping applications
Standard: EN 1092-1 Type 11 (Weld Neck Flange)
Material Grade: P265GH (1.0425)
Pressure Ratings: PN6, PN10, PN16, PN25, PN40

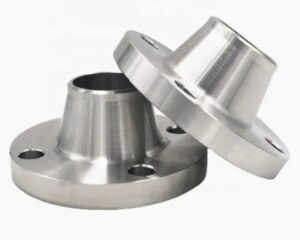

P265GH ( 1.0425 ) EN 1092-1 Type 11 Weld Neck Flange Read More »
DIN 2635 PN40 Welding Neck Flange:
Standard: DIN 2635 (Deutsches Institut für Normung)
Type: Welding Neck Flange (Welded at the neck to match pipe bore)
Pressure Rating: PN40
Facing Type: Raised Face (RF) or Flat Face (FF)
Flange Type Code (DIN): EN 1092-1 Typ 11
Carbon Steel: S235JR, C22.8, P245GH, P250GH,P265GH
Stainless Steel: AISI 304 / 304L /1.4307, AISI 316 / 316L/1.4404 , 321, 347
Alloy Steel: 16Mo3, 13CrMo4-5

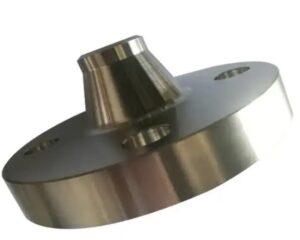

DIN 2635 PN40 WELDING NECK FLANGE Read More »
DIN 2634 PN25 Weld Neck Flange – Specification
Standard: DIN 2634
Type: Weld Neck Flange (WN)
Pressure Rating: PN 25 (25 bar at 20°C ≈ 362 psi)
Nominal Sizes: DN 10 to DN 600 (typical)
Facing: Form B (Raised Face), Form C (Male/Female) optionally available

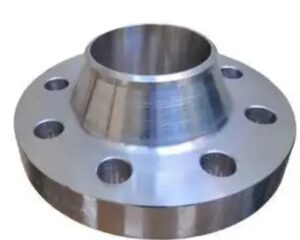

DIN 2634 PN25 Weld Neck Flange Read More »
DIN 2632 PN10 Weld Neck Flange – Specification
Standard: DIN 2632
Type: Weld Neck Flange (WN)
Pressure Rating: PN 10 (10 bar at 20°C ≈ 145 psi)
Sizes: DN 10 – DN 1000 (common range DN 10 – DN 600 in standard tables)
Facing: Form B (Raised Face) or Form C (Male/Female)
Welding Type: Butt-weld to pipe (bevelled neck)

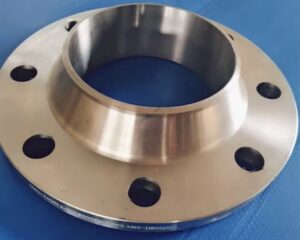

DIN 2632 PN10 Weld Neck Flange Read More »
DIN 2545 standard specifies flat slip-on welding flanges with a PN 40 pressure rating (40 bar at 20°C). These flanges are designed to slip over the pipe end and be welded both inside and outside, creating a secure, leak-proof connection for high-pressure applications.
Type: Slip-On Welding Flat Flange
Pressure Class: PN 40
Size Range: DN 10 to DN 400 (larger sizes on request)
Facing Types: Form A (Flat Face), Form B (Raised Face)
DIN2545 PN40 Flat Flange For Welding (Slip On) Read More »
DIN 2544 standard specifies flat slip-on flanges designed for welding to pipe ends, with a nominal pressure rating of PN 25 (25 bar at 20°C). These flanges are commonly used in oil & gas, chemical, marine, and industrial pipeline systems.
Type: Slip-On Welding Flat Flange
Pressure Class: PN 25
Size Range: DN 10 to DN 600 (larger sizes on request)
Facing Types: Form A (Flat Face), Form B (Raised Face)

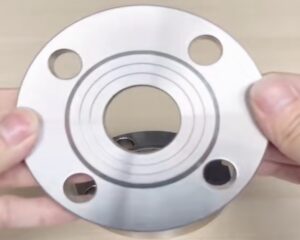

DIN 2544 PN25 Flat Flange For Welding (Slip On) Read More »
DIN 2543 Specification Flat Flanges for Welding (Slip-On) — PN 16
Standard Type: German DIN standard for circular steel flanges.
DN 10 to DN 2000 (Nominal Bore)
Carbon Steel: C22.8 (1.0460), P245GH (1.0352), P250GH (1.0460)
Stainless Steel: 1.4301 (304), 1.4404 (316L), 1.4571 (316Ti)

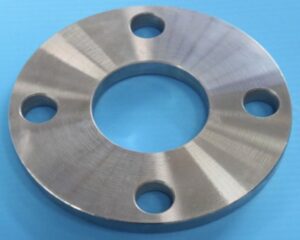

DIN 2543 PN16 Flat Flange For Welding (Slip On) Read More »
