| Flange type (typ) as in DIN EN 1092-1 | |
| EN 1092-1 type 01 (Plate [slip-on] flanges for welding) | 13 (Hubbed threaded flanges) |
| EN 1092-1 type 02 (Loose plate flanges with weld-on plate collar) | 21 (Integral flanges) |
| EN 1092-1 type 04 (Loose plate flanges with weld-neck collar) | 32 (Weld-on plate collars) |
| EN 1092-1 type 05 (Blank [blind] flanges) | 33 (Lapped pipe ends) |
| EN 1092-1 type 11 (Weld-neck flanges) | EN 1092-1 34 (Weld-neck collars) |
| EN 1092-1 12 (Hubbed slip-on flanges for welding) | 36 (Pressed collar with long neck) |
| 37 (Pressed collar) | |
Europe countries mainly install flanges according to standard EN 1092-1 FLANGE STANDARD (forged Stainless or Steel Flanges). Similar to the ASME flange standard, the EN 1092-1 standard has the basic flange forms, such as weld neck flange, blind flange, lappedthe flange, threaded Flange (Thread ISO7-1 instead of NPT), weld on collar, pressed collars, and adapter flange such as flange coupling GD pressfittings. The different forms of flanges within the EN 1092-1 (European Norm Euronorm) is indicated within the flange name through the type.
| Design | According to EN 1092-1 Type | According to DIN |
|---|---|---|
| Weld Neck Flange | Type 11 | DIN 2627 – DIN 2638 |
| Blind Flange | Type 05 | DIN 2527 |
| Threaded Flange | Type 12 | DIN 2558, DIN 2565 – DIN 2569 |
| Flat Flange | Type 01 | DIN 2573, DIN 2576 |
| Lapped Flange | Type 02 & Type 04 | DIN 2641, DIN 2642, DIN 2655, DIN 2656 |
Similar to ASME flanges, EN1092-1 steel and stainless flanges, have several different versions of raised or none raised faces. According to the European form the seals are indicated by different form:
| Form: types of Contact Faces | DIN EN 1092-1 |
|---|---|
| Without Raised Face | Form A |
| Raised Face (Rz = 160 Mechanical Turned) | Form B1 |
| Raised Face ( Rz = 40 Mechanical Turned) | Form B1 |
| Raised Face (Rz = 16 Mechanical Turned) | Form B2 |
| Tongue According to DIN2512 | Form C |
| Groove According to DIN 2512 | Form D |
| Male According to DIN 2513 | Form E |
| Female According to DIN 2513 | Form F |
| Female According to DIN 2514 | Form G |
| Male According to DIN 2514 | Form H |

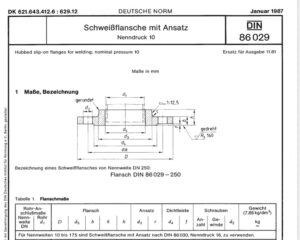

DIN 86029 PN10 Hubbed Slip-On Flanges for Welding are a specific type of pipe flange standardized under German DIN norms, primarily used in marine engineering, shipbuilding, and related water systems.
DIN 86029 PN10 Hubbed Slip On Flanges for Welding Read More »
We are a trusted manufacturer and global supplier of EN 1092-1 Type 11/B1 Weld Neck Flanges made from high-quality 1.4462 (UNS S31803/S32205) duplex stainless steel. These flanges are widely used in chemical processing, marine, offshore, and water treatment industries due to their superior corrosion resistance, high strength, and excellent mechanical properties.
Type: Type 11 – Weld Neck Flange
Facing Type: B1 – Raised Face (PN designated)
Material: 1.4462 Duplex Stainless Steel (equivalent to UNS S31803 / S32205)
Pressure Ratings: PN6, PN10, PN16, PN25, PN40
EN1092-1 Type 11/B1 Flange EN 10222-5 X2CrNiMoN22-5-3 | 1.4462 Flanges Read More »

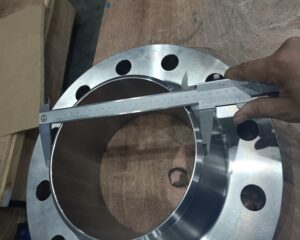

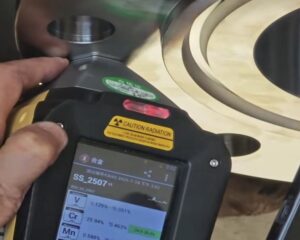

1.4410 Weld Neck Flanges are manufactured from Super Duplex Stainless Steel 1.4410, also known as UNS S32750 or EN X2CrNiMoN25-7-4. This high-performance alloy is widely recognized for its exceptional corrosion resistance, high strength, and long service life in aggressive environments such as offshore, chemical processing, and marine industries.
Standards: EN 1092-1, ASME B16.5, ASME B16.47, DIN standards
Pressure Ratings: PN 10 to PN 400
Sizes: DN 15 to DN 2000 (custom sizes available)
1.4410 Weld Neck Flanges Super Duplex 1.4410 flange EN 1092-1 Read More »

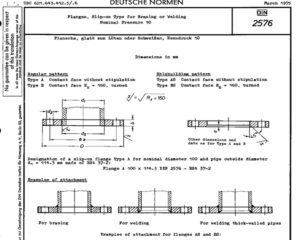

DIN 2576 PN10 Flat Flange For Welding (Slip On)
DIN 2576 is a German industrial standard that specifies the dimensions, tolerances, and requirements for plate flanges (also known as plain flanges or Type 01 flanges) designed for welding to pipes, with a nominal pressure rating of PN10 (10 bar).
DIN 2576 PN10 Flat Flange For Welding (Slip On) Read More »

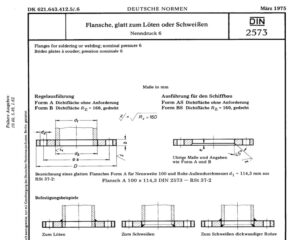

DIN 2573 PN6 Flat Flange for Welding (Plate Slip On)
Standard Name: DIN 2573 – Circular flanges made of steel – for welding – PN6
Flange Type: Plate Flange (Flat Flange), also called Type 01 according to EN 1092-1
Nominal Pressure: PN6 (6 bar)
Connection Type: Butt-welded to pipe
Face Type: Flat Face (FF)
DIN 2573 PN6 Flat Flange for Welding (Plate Slip On) Read More »

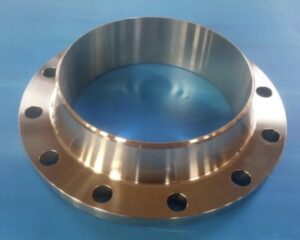

DIN 2633 PN16 Welding Neck Flange:
tandard: DIN 2633 (Deutsches Institut für Normung)
Type: Welding Neck Flange (Welded at the neck to match pipe bore)
Pressure Rating: PN16 (16 bar ≈ 232 psi)
Facing Type: Raised Face (RF) or Flat Face (FF)
Flange Type Code (DIN): EN 1092-1 Typ 11
Carbon Steel: S235JR, C22.8, P245GH, P250GH,P265GH
Stainless Steel: AISI 304 / 304L /1.4307, AISI 316 / 316L/1.4404 , 321, 347
Alloy Steel: 16Mo3, 13CrMo4-5
DIN 2633 PN16 WELDING NECK FLANGE Read More »
We are a trusted manufacturer and global exporter of X1NiCrMoCu25-20-5 / 1.4539 flanges, also known as 904L stainless steel flanges.
Size Range: ½” to 48” (DN15–DN1200)
Pressure Ratings: Class 150 to 2500 / PN6 to PN100
Dimensions as per: ASME B16.5, B16.47, EN 1092-1, DIN, BS, GOST
EN 1092-1 Type 11 X1NiCrMoCu25-20-5 / 1.4539 Flange Weld neck Read More »

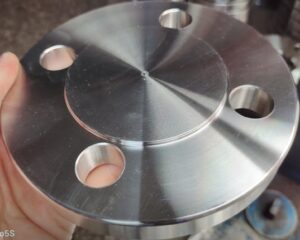

We are a leading manufacturer and supplier of EN 1092-1 Type 05 blind flanges for pipeline applications across a range of industries. Our blind flanges are designed and manufactured in conformity with EN 1092-1 standard.
Nominal Size (DN): 15 (1/2″) — 2000 (80″)
Flange Thickness: 12–60 mm (depending on pressure class and size)
PN6,PN10.PN16,PN25,PN40
EN 1092-1 type 05 Blind Flanges Read More »
We are a leading manufacturer and supplier of EN 1092-1 Type 11 weld neck flanges for pipeline applications across a range of industries. Our weld neck flanges are designed and manufactured in conformity with EN 1092-1 standard — ensuring dependability, structural integrity, and resistance under high pressure and temperature.
✅ Nominal Size (DN): 15 (1/2″) — 2000 (80″)
✅ Flange Thickness: 16–60 mm (depending on pressure class and size)
EN 1092-1 type 11 Weld neck flange WNRF Read More »

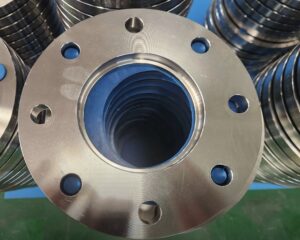

We are a leading manufacturer and supplier of EN 1092-1 Type 01 plate slip-on flanges for pipeline applications across a range of industries. Our plate slip-on flanges are designed and manufactured in conformity with EN 1092-1 standard — delivering dependability, resistance to pressure, and a perfect fit for your pipeline components.
✅ Nominal Size (DN): 15 (1/2″) — 2000 (80″)
✅ Flange Thickness: 12–60 mm (depending on pressure class and size)
✅ Flange Facing: flat face (Type A) or raised face (Type B)
EN 1092-1 type 01 Plate slip-on flanges for welding Read More »
