A flange is a piping component that provides a secure, leak-proof connection between sections of pipe or between pipes and other equipment (valves, pumps, vessels). Flanges feature a flat, machined face with bolt holes that allow two mating flanges to be fastened together with a gasket in between, ensuring a reliable seal under pressure.
| SPECIFICATION | MATERIAL GRADE |
| CARBON STEEL | ASTM A105 ASME SA105 |
| ASTM A266 ASME SA266 | Gr1/Gr2/Gr3/Gr4 |
| ASTM A350 ASME SA350 | LF1,LF2,LF3 |
| ASTM A694 ASME SA694 | F42,F46,F48,F50,F52,F56,F60,F65 |
| ALLOY STEEL ASTM A182 ASME SA182 | F1,F2,F5,F5A,F9,F91,F11 CL1~CL3,F12 CL1~CL2, F22 CL1, F22 CL3 |
| ASTM A508 ASME SA508 | CL1,CL2,CL3 |
| STAINLESS STEEL ASME SA182 ASTM A182 | F6A,F304,F304L,F304H,F310,F310H,F316,F316L,F316H,F316Ti,F317, |
| F317L,F347,F347H,F321,F321H,F44,F64,F904L | |
| DUPLEX S/DUPLEX STEEL ASTM A182 ASME SA182 | F51,F53,F55,F60 |
| INCONEL INCOLOY ASTM B564 ASME SB564 | N06625, N08825, N04400,N08800 |
| COPPER ASTM B171 | C70600, C46400,C10200,C11000,C12200 |
| ITEMS | TYPE | ||
| NON-STANDARD | RING TYPE | 5000Ø | |
| BLIND TYPE(TUBE SHEET) | 3000Ø | ||
| STANDARD FLANGE | CODE SPECIFICATION | SIZE | RATING |
| ASME B16.5 / API | 1/2″~24″ | #150~#2500 | |
| ASME B16.47 ( MSS-SP-44 )( API 605 ) | 12″~60″ | #150~#900 | |
| 26″~60″ | #75~#900 | ||
| ASME B16.36 | 1″~24″ | #300~#2500 | |
| AWWA C207 | 4″~144″ | CLASS B,D,E,F | |
| EN1092-1 / BS4504 / DIN | DN10~DN4000 | PN2.5 ~ PN100 | |
| API 6A/6BX | 2 1/16″~30″ | 2000psi~20000psi | |
| BS3293 | 26″~48″ | #150~#600 | |
| TAYLOR FLANGE | 26″~96″ | #125~#350 | |
| JIS B2220 / KS B1503 | 10A ~ 1500A | 5K~30K | |
| FLANGE TYPE | WELD NECK FLANGES,BLIND FLANGE,SLIP ON FLANGE,THREAD FLANGE | ||
DIN 86282 Sewage systems on ships -Flanges for international discharge connection
Carbon steel C22.8, RST37.2, S235JR, P235GH, P245GH, P250GH, ASTM A105,
Stainless steel :ASTM A182 F304 (1.4306), F304L(1.4307), F316(1.4404), F316L(1.4404), F321(1.4541)
DIN 86282 Sewage systems on ships -Flanges for international discharge connections Read More »
DIN 86044 Flanges PN6 Flange Exhaust Gas Lines on Ships
Material availability of Din 86044 flange
Carbon Steel (St37 / C22.8)
Stainless Steel (1.4301/304, 1.4404/316L)
Duplex Stainless (1.4462/S32205,UNS S32750)
DIN 86044 Flanges PN6 Flange Exhaust Gas Lines on Ships Read More »
C70600 Copper Nickel Flange EEMUA 145 Manufacturer
C70600 Weld neck flanges, C70600 Slip on flanges
EEMUA 145 : 1986 is the standard for COPPER NICKEL ALLOY PIPING FOR OFFSHORE APPLICATIONS – SPECIFICATION – FLANGES COMPOSITE AND SOLID
CuNi 90/10 C70600 Copper Nickel Weld neck Flange EEMUA 145 Read More »

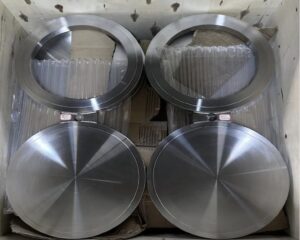

ASTM A182 F53 UNS S32750 Spectacle Blind Flange ASME B16.48
Material: ASTM A182 F53 (UNS S32750)Super duplex stainless steel
Standard: ASME B16.48
Pressure Classes: 150# – 2500#
Nominal Sizes: ½″ – 24″
Face Types: Raised Face (RF), Ring Type Joint (RTJ) Flat Face,(FF)
ASTM A182 F53 UNS S32750 Spectacle Blind Flange ASME B16.48 Read More »
ASME SA266 Gr. 2 /ASTM A266 Gr. 2 is a low to intermediate forged carbon steel grade that is commonly used for pressure vessel components such as tubesheets, flanges, and fittings.
Flange Standard Available in material SA266 Gr.2
Sizes, Standards & Pressure Ratings
Size Range: ½″ to 60 ″ nominal bore (NB)
Standards: ANSI/ASME B16.5, B16.47 Series A & B, BS4504, EN-1092, DIN,
Pressure Classes: 150#, 300#, 600#, 900#, 1500#, 2500#,
ASME SA266 Gr.2 Forged Flanges Girth Flanges Read More »
ASTM A705 Gr 630 17-4pH Forgings Manufacturer
We are professional ASTM A705 Gr. 630 17-4ph Forged Forging Turbine Impeller stop rings.
We could make forged rings with diamter from 80MM to 6000MM, with weight from 10KGS to 15000KGS
ASTM A705 Gr 630 17-4pH Forging Parts Turbine rings Read More »
ASTM A350 LF3 Flanges,Forgings Manufacturer
ASTM A350 LF3 are low-temperature carbon steel forged flanges, specifically designed for use in cryogenic and subzero environments. LF3 is a nickel grade (3.3–3.7%), making it suitable for colder service than LF2 or LF6
Weld Neck (WN)
Slip-On (SO)
Blind (BL)
Socket Weld (SW)
ASTM A350 LF3 Flanges,Forgings ASME B16.5 Read More »

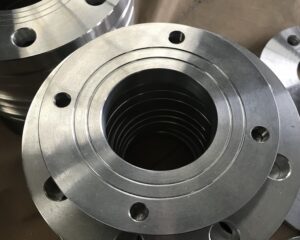

Aluminum 6061 Flange Manufacturer
Flange could be made of Aluminum 6061 material. the Aluminum flange offers excellent strength-to-weight ratio, corrosion resistance, and machinability, making it suitable for many industrial and typically in marine ,ship building applications.
Aluminum 6061 Flange/ JIS 10K PN16 Plate Flanges Read More »
