Gasket,We always refer to A flange gasket,which is a mechanical sealing material placed between two flanges to prevent leaks in piping systems. It is installed between the flange faces and ensures a tight seal under pressure, temperature, and environmental conditions.
Applications: Oil & gas pipelines, petrochemical industries.

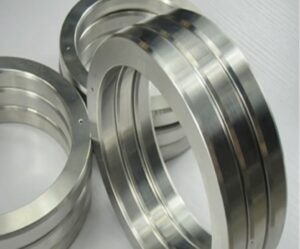

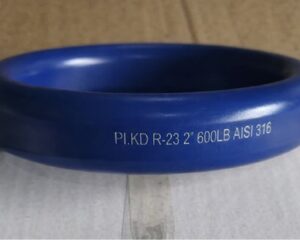

Ring Joint gaskets are available in octagonal or oval .Ring gaskets are widely used in Refineries, Petrochemical Industries, drilling well head equipment, Pressure Vessels, valves, Christmas Tree valves and Pipe lines. Our ring joint gaskets are strictly manufactured as per API-6A and ASME B16.20 specification.

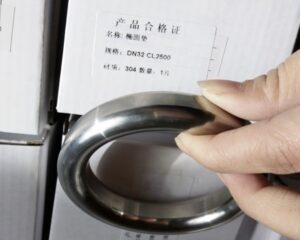

Oval Ring Type Joint Gasket ASME B16.20 API 6A Read More »
Type F Flange Insulation Gasket Kit ASME B16.5
The Type F insulation kit consists of:
1. Gasket Neoprene-faced phenolic
G-10 (Glass-reinforced epoxy)G-11
PTFE (Teflon)6.4mm (1/4″),
2. Insulating Sleeves
Mylar (Polyester Film)
Phenolic Polyethylene G-10 Epoxy
Thickness: Typically 0.8mm to 1.6mm (1/32” to 1/16”).
3. Insulating Washers
Materials:Neoprene-faced phenolic
G-10 Epoxy G-11
4.Steel washer
Material: Zinc-plated or stainless steel.
Type F Flange Insulation Gasket Kit ASME B16.5 Read More »
Spiral Wound Gaskets (SWG) is wound alternatively by V or W shaped metal hoop and non-metal filler of various kinds of materials selected based on specific working condition,with inner ring and/or out ring as options.The inner ring and outer ring are used to enhance the compressive capacity of the gasket. Meanwhile, they cooperate with the assembly of different flange surfaces to improve the performance of the spiral wound gasket.
CG Type Spiral Wound Gasket with outer ring, ANSI B16.20 SS 316 FG Filler gasket Read More »
CGI Type Spiral Wound Gasket, ANSI B16.20 SS 316 FG Filler gasket,Typical Description of a CGI Type Spiral Wound Gasket
Product Name: CGI Spiral Wound Gasket
Size: 8 Inch, DN150
Standard: ASME B16.20
Class 300 LB
Material of Inner Ring: SS316L Stainless Steel
Material of Outer Ring: Carbon Steel
Filler: AISI 316L Hoop Filled with Flexible Graphite
CGI Type Spiral Wound Gasket, ANSI B16.20 SS 316 FG Filler gasket Read More »
