Stud Bolt

Stud Bolt or Studs,sometimes called Full thread rods are externally threaded fasteners that typically look like and operate as threaded bars. They’re different from screws and bolts in the fact that they don’t usually have a head that requires tightening — just continuous threading that can be paired with nuts

Stud bolts are the bolting material or fastener used to tighten the flange joint connection according to ASME B16.5 Code

Stud Bolt Standards

ANSI/ASME B18.31.2

ANSI/ASME B16.5

DIN 975

Bolt  Materials：

Carbon Steel Stainless Steel Duplex & Super Duplex
• ASTM A193 B7 • ASTM A193 B8 CL1/CL2 • ASTM A182 F51, S31803
• ASTM A193 B7M • ASTM A193 B8M CL1/CL2 • ASTM A182 F53, S32750
• ASTM A193 B16 • ASTM A193 B8C CL1/CL2 • ASTM A182 F55, S32760
• ASTM A320 L7 • ASTM A193 B8T CL1/CL2
• ASTM A320 L7M • ASTM A320 B8 CL1/CL2
• ASTM A320 L43 • ASTM A320 B8M CL1/CL2
• ASTM A325 • ASTM A320 B8C CL1/CL2
• ASTM A320 B8T CL1/CL2
• ASTM A453 660
• ASTM A453 662A
• ASTM A453 665B

Thread

Nominal size or diameter 1″ and smaller 1 1/8″ and larger
INCH SERIES UNIFIED COARSE THREAD SERIES UNIFIED 8 THREAD SERIES
CLASS 2A ASME B1.1 CLASS 2A ASME B1.1
Nominal size or diameter 1″ and smaller 1 1/8″ and larger
METRIC SERIES METRIC COARSE THREAD SERIES METRIC FINE AND COARSE PITCH THREADS
CLASS 6g ISO 68/ IS0 965 CLASS 6g ISO 68/ ISO 965

Fastener Surface coatings
Blacken

zinc coated, hot dipped galvanized, cadmium coated,

PTFE coated, Zinc Plating +PTFE coating,TEFLON coated, XYLAN coated,
Colors: blue, green, red, silver, black, grey and zinc, etc.

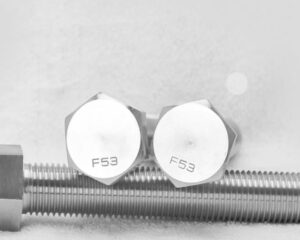

UNS S32750- Super Duplex 2507 Stud Bolt ASTM 182 F53

UNS S32750 / Super Duplex 2507 Stud Bolt ASTM A182 F53

Stud Bolt /

S32750 stud bolts, also known as Duplex 2507 or UNS S32750, are engineered to deliver exceptional performance in the most demanding industrial applications. With superior pitting resistance, outstanding mechanical properties, and excellent weldability

Dimensions:
Metric Sizes: M10 to M100
Imperial Sizes: 3/8″ to 4″

Lengths: Up to 4 meters

Thread Types: UNC, UNF, 8UN, Metric Coarse & Fine (per ANSI B1.1 and B1.13M)

UNS S32750 / Super Duplex 2507 Stud Bolt ASTM A182 F53 Read More »

ASTM A453 grade 660 CL B Stud Bolt

ASTM A453 660 B Studs,A453 Grade 660 Cl B Stud bolts

Stud Bolt / ,

ASTM A453 Grade 660 Cl B Stud bolt Fasteners Manufacturer

Imperial (Inch): Unified National Coarse (UNC) or Fine (UNF)

Metric: ISO Metric thread (M12, M16, M20, M24, etc.)

Nominal Diameter (inch) Metric Equivalent (mm) Common Thread Type
¼” – 2 1/2″ ~M6 – M65 UNC / UNF (imperial)
or ISO Metric (M-thread

ASTM A453 660 B Studs,A453 Grade 660 Cl B Stud bolts Read More »

ASTM-A193-B6-Stud-bolt-AISI-410-with-A194-gr.6-Hex-nuts-1.

ASTM A193 B6 Stud bolt AISI 410 with A194 gr.6 Hex nuts

Stainless Steel, Stud Bolt /

ASTM A193 B6 Stud bolt Manufacturer

ASTM A193 Grade B6 refers to a martensitic class of stainless steel, AISI 410. which is Intended to make the stud bolt used in general purposes.

Standard Dimensions: ASME B18.2.1 / ASME B18.31.2

Threading: UNC (Coarse), UNF (Fine), or Metric per ASME B1.1 / B1.13M
Size: ¼ to 4″ [6-100 mm]
Length: Available in standard and custom cut lengths

ASTM A193 B6 Stud bolt AISI 410 with A194 gr.6 Hex nuts Read More »
