C12200 Tube Manufacturer
We are a professional manufacturer and global supplier of copper tubes and copper pipes, including TP2 copper tube (GB/T) and C12200 copper tube (ASTM).
These products are widely used in HVAC systems, refrigeration, air conditioning, plumbing, heat exchangers, water supply, gas pipelines, and industrial applications due to their excellent thermal conductivity, corrosion resistance, and formability.
C12200 (Phosphorus-Deoxidized Copper, DHP) and TP2 copper are among the most commonly used copper tube materials worldwide.
What Is C12200 / TP2 Copper?
C12200 (TP2) is a high-purity copper alloy containing a small amount of phosphorus, which provides:
- Excellent weldability and brazability
- High thermal and electrical conductivity
- Good corrosion resistance
- Resistance to hydrogen embrittlement
- Long service life
TP2 or C12200 is also known as Cu-DHP in EN grade,whichis a phosphorus-deoxidized copper with a limited, high amount of residual Phosphorus.
Cu DHP refers to (Deoxidized High Phosphorus) copper. our C12200 tubes are widely used in heat exchangers, refrigeration systems, HVAC, plumbing, and industrial piping due to their excellent corrosion resistance, thermal conductivity, and weldability.
C12200 Phosphorus deoxidized, high residual phosphorus can be produced according to ASTM B75.
Standard Specification for seamless Copper Tube ,1 This specification2 establishes the requirements for
seamless round, rectangular, and square copper tube suitable for general engineering applications.

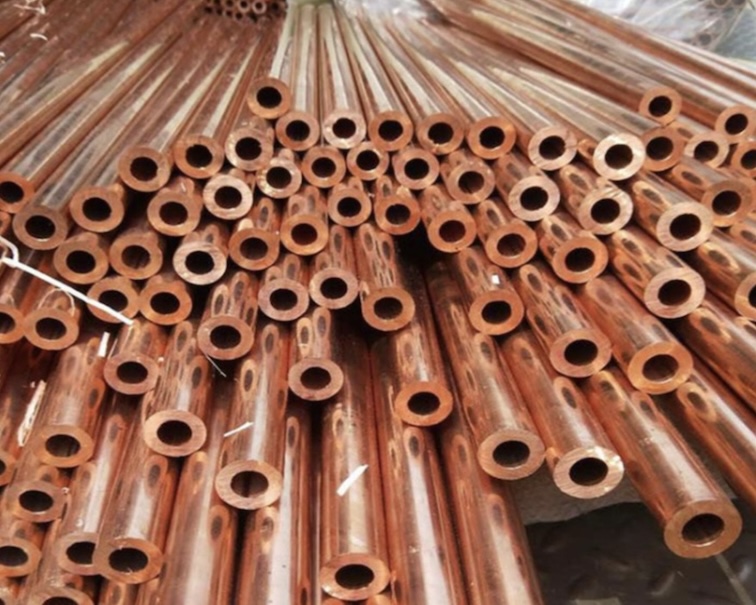

C12200 Copper Tubes
- Material Grade: ASTM B75 C12200 (UNS C12200)
- High Thermal Conductivity: Ideal for heat transfer applications
- Excellent Corrosion Resistance: Suitable for water, steam, and air
Sizes and Tolerances
- OD Range: 1/8” to 4” (3 mm to 108 mm)
- Wall Thickness: 0.4 mm to 10 mm
- Length: Custom length up to 6 meters or coil form
- Tolerances per ASTM and customer specification
Composition of Copper UNS No. C12200
| Element | Composition, % – Copper UNS No. C12200 |
|---|---|
| Copper⁶, min | 99.9 |
| Copper⁶ + phosphorus, min | … |
| Phosphorus | 0.015 – 0.040 |
| Arsenic | … |
Mechanicial Properties
| Temper Designation – Standard | Temper Designation – Former | Outside Diameter, or Major Distance Between Outside Parallel Surfaces (in.) | Wall Thickness (in.) | Rockwell Hardness – Scale | Rockwell Hardness – Hardness | Average Grain Size (mm) | Tensile Strength (ksi) | Yield Strength (min., ksi) |
|---|---|---|---|---|---|---|---|---|
| H55 | light-drawn⁶ | all | all | 30T⁰ | 30 to 60 | 36–47 | 30 | |
| H58 | drawn (general purpose) | all | all | 30T⁰ | 30 min | 36 min | 30 | |
| H80 | hard-drawn⁶ | up to 4 | 0.020 to 0.250, incl | 30T⁰ | 55 min | 45 min | 40 | |
| O60 | soft anneal | all | 0.015 to 0.035 | 15Tᴱ | 60 max | 0.040 min | 30 min | 9ᶠ |
| 0.035 and over | Fᴱ | 50 max | 0.040 min | 30 min | 9ᶠ | |||
| O50 | light anneal | all | 0.015 to 0.035 | 15Tᴱ | 65 max | 0.040 max | 30 min | 9ᶠ |
| 0.035 and over | Fᴱ | 55 max | 0.040 max | 30 min | 9ᶠ |
Standards and Certifications
- ASTM B75 / B88 / B280 / B68
- JIS H3300
- EN 1057
- ISO 9001 / SGS / RoHS Compliant
- MTC with chemical & mechanical test results provided
Typical Applications
C12200 tubes are ideal for:
- Heat exchangers and condensers
- Plumbing and sanitary piping
- Solar water heaters
- Air conditioning and refrigeration systems (HVAC)
- Chemical processing and gas lines
- Oxygen and medical gas delivery systems
Order Example
Product: C12200 Copper Tube
Equivalent: TP2
Size: 15.88 mm × 0.8 mm
Temper: Annealed
Length: 6 m
Standard: ASTM B280
Certificate: EN 10204 3.1
