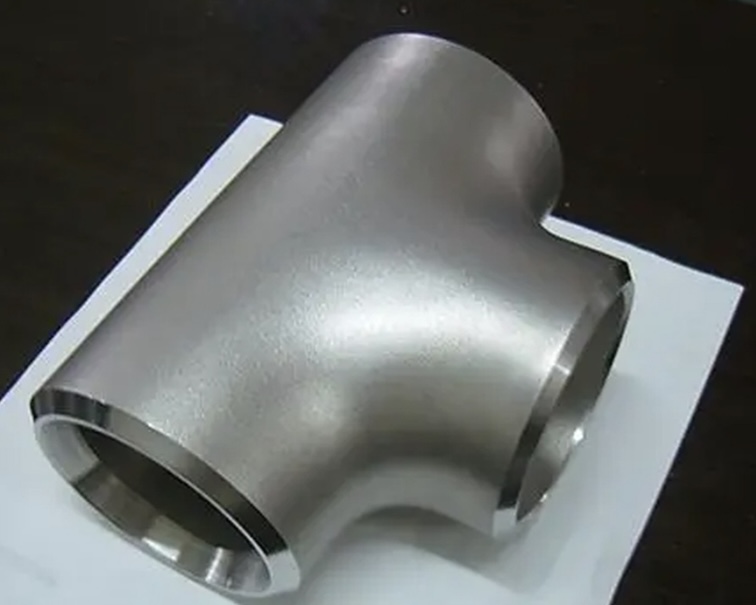

GOST 17376 Seamless welded steel tees

GOST 17376 steel tees Manufacturer

GOST 17376 is a Russian standard that defines the specifications for steel tees used in piping systems. These tees are butt-welded fittings designed for branching with 90° from the run pipe, and they are widely used in oil, gas, water, and industrial piping systems.

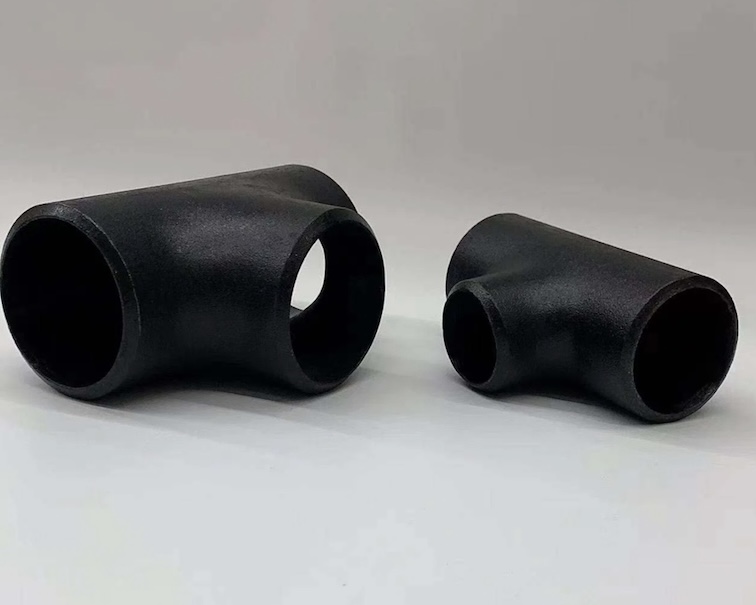

GOST 17376 Steel Tees

Standard Name: GOST 17376 — Steel welded equal and reducing tees for pipelines.
Type: Butt-welded tees (equal or reducing)
Material: Carbon steel, alloy steel, stainless steel (per related GOST specifications or TU standards)
CT20,09G2S
304, 304L, 316, 316L, 321, 347, 08Х18Н10, 10Х18Н10Т, 12Х18Н10Т, 20Х23Н13, 10Х17Н13М2Т, etc.
Size:DN 15 to DN 1000 (commonly)
Connection Type: Butt-weld (for welding to pipes)
Application: Pressure piping systems for water, steam, gas, oil, etc.

GOST 17376 Tees Dimension and Weight

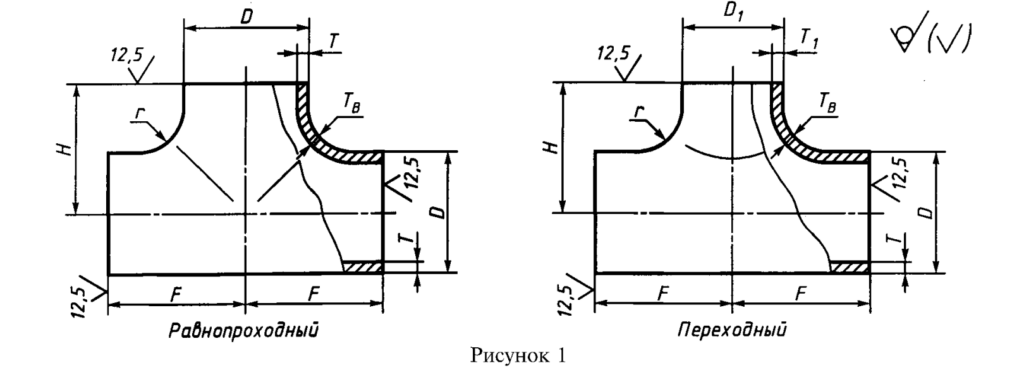

GOST 17376 equal and reducing tee

DN	D	T	D1	T1	F	H	Масса. кг
15		2.0	21.3	2.0	25	25	0.19
	21.3	3.2		3.2			0.30
		4.0		4.0			0.38
20	26.9	2.0		2.0	29	29	0.26
		3.2		3.2			0.42
		4.0		4.0			0.52
		2.0	26.9	2.0			0.23
		3.2		3.2			0.37
		4.0		4.0			0.46
25	33.7	2.3	21.3	2.0	38	38	0.25
		3.2		3.2			0.35
		4.5		4.0			0.4
		2.3	26.9	2.0			0.25
		3.2		3.2			0.35
		4.5		4.0			0.40
		2.3	33.7	2.3			0.40
		3.2		3.2			0.64
		4.5		4.5			0.80
32	42.4	2.6	21.3	2.0	48	48	0.79
		3.6		3.2			1.10
		5.0		4.0			1.50
		2.6	26.9	2.0			0.79
		3.6		3.2			1.10
		5.0		4.0			1.50
		2.6	33.7	2.3			0.79
		3.6		3.2			1.1
		5.0		4.0			1.5
		2.6	42.4	2.6			0.79
		3.6		3.6			1.10
		5.0		5..0			1.50
40	48.3	2.6	26.9	2.0	57	57	1 .00
		3.6		3.2			1.40
		5.0		4.0			2.00
		2.6	33.7	2.3			1.00
		3.6		3.2			1.40
		5.0		4.5			2.00
		2.6	42.4	2.6			1.00
		3.6		3.6			1.40
		5.0		5.0			2.00
		2.6	48.3	2.6			1.00
		3.6		3.6			1.4
		5.0		5.0			2.00
50	60..3	2.9	33.7	2.9	64	51	1.60
		4.0		4.0			2.20
		5.6		5.6			3.00
		2.9	42.4	2.6		57	1.60
		4.0	3.6	2.20
		5.6	5.0	3.00
		2.9	48.3	2.6		60	1.60
		4.0		3.6			2.20
		5.6		5.0			3.00
		2.9	60.3	2.3		64	1.60
		4.0		3.2			2.20
		5.6		4.5			3.00
65	76.1	2.9		2.6		64	3.20
		5.0	42.4	3.6		64	5.50
		7.1		5.0	76		7.90
		2.9	48.3	2.9			3.20
		5.0		4.0			5.50
		7.1		5.6			7.90

		2.9	60.3	2.6		67	3.20
		5.0		3.6			5.50
		7.1		5.0			7.90
		2.9	76.1	2.9			3.20
		5.0		5.0			5.50
		7.1		7.1			7.90
80	88.9	3.2	48.3	2.9	86	73	2.9
		5.6		4.0			4.0
		8.0		5.6			5.6
		3.2	60.3	2.9		76	2.9
		5.6		4.0			4.0
		8.0		5.6			5.6
		3.2	76.1	2.9		83	2.9
		5.6		5.0			5.0
		8.0		7.1			7.1
		3.2	88.9	3.2		0.86	3.2
		5.6		5.6			5.6
		8.0		8.0			8.0
100	114.3	3.6	60.3	2.7	105	89	3.80
		6.3		4.0			6.70
		8.8		5.6			10.00
		3.6	76.1	2.9		95	4.50
		6.3		5.0			7.80
		8.8		7.1			10.0
		3.6	88.9	3.2		98	4.50
		6.3		5.6			7.80
		8.8		8.0			10.00
		3.6	114.3	3.6		105	4.50
		6.3		6.3			7.80
		8.8		8.8			10.00
125	139.7	4.0	76.1	2.9	124	108	3.40
		6.3		5.0			5.30
		10.0		7.1			16.00
		4.0	88.9	3.2		111	3.40
		6.3		5.6			5.30
		10.0		8.0			16.00
		4.0	114.3	3.6		117	3.40
		6.3		6.3			5.30
		10		8.8			16.00
		4.0	139.7	4.0		124	3.40
		6.3		6.3			5.30
		10.0		10.0			16.00
150	168.3	4.5	88.9	3.2	143	124	9.40
		7.1		5.6			16.00
		11.0		8.0			24.00
		4.5	114.3	3.6		130	9.40
		7.1		6.3			16.00
		11.0		8.8			24.00
		4.5	139.7	4.0		137	9.40
		7.1		6.3			16.00
		11.0		10.0			24.00
		4.5	168.3	4.5		143	9.40
		7.1		7.1			16.00
		11.0		11.0			24.00
200	219. 1	6.3	114.3	3.6	178	156	16.00
		8.0		6.3			20.00
		12.5		8.8			43.00
		6.3	1 39.7	4.0		162	16.00
		8.0		6.3			20.00
		12.5		10.0			43.00
		6.3	168.3	4.5		168	16.00
		8.0		7.1			20.00
		12.5		11.0			43.00
		6.3	219.1	6.3		178	23.00
		8.0		8.0			29.00
		12.5		12.5			44.00
250	273.0	6.3 10.0	139.7	4.0 6.3	216	191	33.0 52.0
		6.3 10.0	168.3	4.5 7.1		194	33.0 52.0
		6.3 10.0	219.1	6.3 7.1		203	33.0 52.0
		6.3 10.0	273.0	6.3 10.0		216	33.0 52.0
300	323.9	7.1 10.0	168.3	4.5 7.1	254	219	47.00 66.00
		7.1 10.0	219.0	6.3 8.0		229	47.00 66.00
		7.1 10.0	273.0	6.3 8.0		241	47.00 66.00
		7.1 10.0	323.9	7.1 10.0		.254	54.00 77.00
350	355.6	8.0 11	219.1	6.3	279	248	__
		8.0 11	273.0	6;3 10.0		257
		8.0 11	323.9	7.1 10.0		270
		8.0 11	355.6	8.0 11.0		279	68.00 94.00
400	406.4	8.8 12.5	273.0	6.3 10.0	305	283	__
		8.8 12.5	323.9	7.1 10.0		295	__
		8.8 12.5	355.6	8.0 10.0		:305	__
		8.8 12.5	406.4	8.8 12.5		:305	88.00 131.00
450	457.0	10.0	323.9	7.1	343	321	—
			355.6	8.0		330
			355.6	11.0
			406.4	8.8
			457.0	10.0		343
500	508.0	11.0	355.6	8.0	381	356	—
			406.4	8.8		356
			457.0	10.0		0.368
			508.0	11.0		381
600	610.0	12.5	406.4	8.8	432	406	—
			457.0	10.0		419
			508.0	11.0		432
			610.0	12.5		432
700	711.0	—-	711.0	__	521	521	—
800	813.0		813.0		597	597
900	914.0		914.0		673	673
1000	1016.0		1016.0		749	749

Looking for high-quality GOST 17376 Tees? We supply a full range of butt-welded steel tees, including equal tees and reducing tees.
