Hexagon Head Plug / Shoulder Plug Manufacturer
We are a professional Hexagon Head Plug / Shoulder Plug Manufacturer
Hexagon Plugs are commonly used in combination with gasket seals to close tubes within the header of an (Air-Cooled) Heat Exchanger and to prevent them from leaking. They are able to withstand huge pressure. Through these tubes mostly energy (heat) is being transferred from a hot liquid (medium) to a colder liquid (medium).
About Hexagon Head Plug / Shoulder Plug

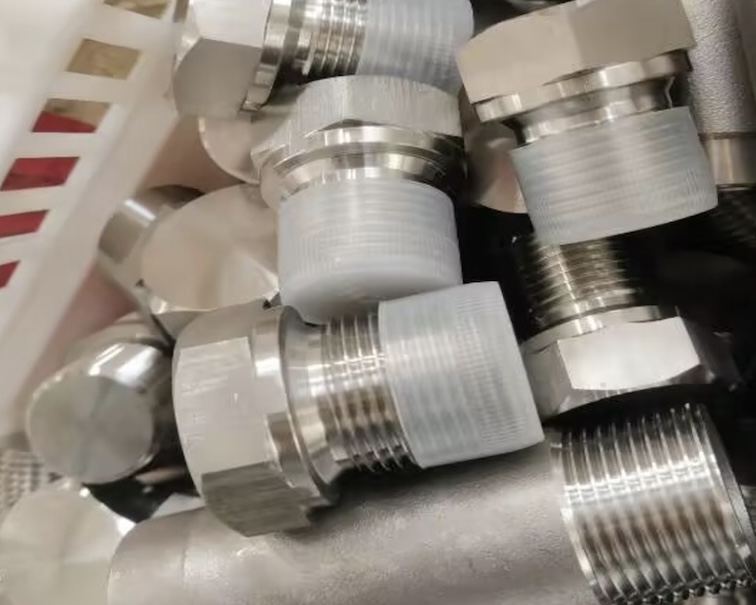

The Hexagon Head Plug (also called a Shoulder Plug) is a threaded closing device with a hexagonal profile for easy installation and removal using standard wrenches or tools. Often used in heat exchangers, pressure vessels, boilers, and process equipment, these plugs enable maintenance, repairs, and pressure testing without requiring extensive disassembly.
These plugs are designed for aircooled heat exchangers to seal pipe system ends. Forged header plugs and stainless steel plugs are ideal for petrochemical and power industries. Shoulder plugs/header plugs suit plug-type header boxes in aircooled heat exchangers or fin fan air coolers. Each tube is sealed by a shoulder plug with a gasket, enabling individual tube inspection and cleaning. Spare plugs and gaskets are needed for routine maintenance (to replace originals) or to plug leaking tubes.
Shoulder Plug Specifications
Size Range
- 3/4″-16 UNF, 7/8”-14 UNF, 1-1/8”-12 UNF, 1-1/2”-12 UNF, 1-3/4”-12 UNF, 1-5/8”-12 UNF, 2”-12 UNF
- Custom sizes available per customer drawings/dimensions.
Length Range
15 mm to 100 mm
Material Grades
Stainless Steel Header/Shoulder Plugs
ASTM A182 F304, F304L, F304H,A182 F316, F316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel
UNS S31803, S32205 (2205), S32750, S32760, S32950, 2507
Carbon Steel
- ASTM/ASME A/SA 105
- ASTM A350 LF2, LF3,
Alloy Steel
ASTM/ASME A/SA 182 F1, F5, F9, F11, F12, F22, F91
Nickel Alloys
- Nickel 200 (UNS N02200), Nickel 201 (UNS N02201)
- Monel 400 (UNS N04400), Monel 500 (UNS N05500)
- Inconel 800 (UNS N08800), 825 (N08825), 600 (N06600), 625 (N06625), 601 (N06601)
- Hastelloy C276 (UNS N10276), Alloy 20 (UNS N08020)
Popular size of Shoulder Plug
Header Plug
Material: A182 F316L
Size: 1-1/8″-12 UNF
Thread Length: 1″
Shoulder Plug with 1 Gasket
Material: SS 304
Size: 1-1/8″-12 UNF
Thread Length: 0.875″
Hex Head Plug with 1 Gasket
Material: Carbon Steel A 105
Size: 1-3/8″-12 UNF
Thread Length: 1″
Header UNF Plug with 1 Gasket
Material: A350 LF2 – CL1
Size: 1-5/8″-12 UNF
Thread Length: 0.875″
Header Plug with 1 Gasket
Material: Monel 400
Size: 2-1/8″-12 UNF
Thread Length: 1″
Shouler Plug size Dimension table
| Plug | Std | Length | Length | Hex Size Inch | Hex Size MM |
| Dia | UNF | Under Head Inch | Under Head MM | ||
| 3/4 | 16 | 5/8 | 15.90 | 1 | 25.40 |
| 3/4 | 19.05 | ||||
| 7/8 | 22.23 | ||||
| 1 | 25.40 | ||||
| 1.1/4 | 30.75 | ||||
| 7/8 | 14 | 7/8 | 22.23 | 1.1/8 | 28.58 |
| 1 | 25.40 | ||||
| 1.1/8 | 12 | 3/4 | 19.05 | 1.3/8 | 34.93 |
| 7/8 | 22.23 | ||||
| 1 | 25.40 | ||||
| 1.1/8 | 28.58 | ||||
| 1.1/4 | 30.75 | ||||
| 1.3/8 | 34.93 | ||||
| 1.1/2 | 38.10 | ||||
| 1.5/8 | 41.28 | ||||
| 1.3/4 | 44.45 | ||||
| 2 | 50.80 | ||||
| 1.3/8 | 12 | 3/4 | 19.05 | 1.5/8 | 41.28 |
| 7/8 | 22.23 | ||||
| 1 | 25.40 | ||||
| 1.1/8 | 28.58 | ||||
| 1.5/8 | 12 | 7/8 | 22.23 | 1.7/8 | 47.63 |
| 1 | 25.40 |
⬇️ Download Shoulder Plug specification dimension chart Now (PDF)
