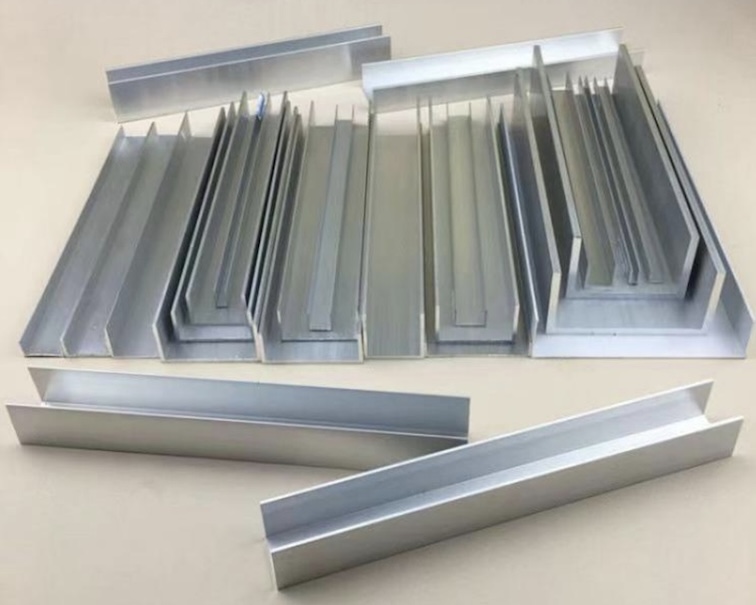

6082 T6 U Channel Manufacturer
An aluminum U-channel is a structural component shaped like the letter “U.” It is widely used in construction, aerospace, marine, transportation, and industrial applications due to its lightweight, strength, and corrosion resistance.We have both Aluminium equal U channels and unequal U channels
In this Page you would find the character of 6082 T6 U channel and size,availability
EN AW-6082 is a medium strength precipitation hardenable, corrosion-resistant alloy widely used in structural, marine, and industrial applications. It belongs to the 6xxx series (Al-Mg-Si) and offers better strength than 6061 while maintaining good weldability and machinability.
6082 T6 Chemical composition according to EN573-3
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | remarks | others | |
| each | total | |||||||||
| 0.7 – | max. | max. | 0.40 – | 0.6 – | max | max | max | max | max | |
| 1.3 | 0.50 | 0.10 | 1.0 | 1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | |
Mechanical properties according to EN755-2
| Temper* | Wallthickness e*** | Yield stress Rp0.2 [MPa] | Tensile strength Rm[MPa] | Elongation | Hardness** HB | |
| A [%] | A50mm [%] | |||||
| T4 | e ::: 25 | 110 | 205 | 14 | 12 | 65 |
| T5 | e ::: 5 | 230 | 270 | 8 | 6 | 80 |
| T6 | e ::: 5 | 250 | 290 | 8 | 6 | 95 |
| 5 < e ::: 25 | 260 | 310 | 10 | 8 | 95 | |
6082 T6 U Channel Stock Size
| Size | Material grade |
| C100*25*3 | 6082-T6 |
| C100*50*3 | 6082-T6 |
| C100*50*5 | 6082-T6 |
| C101.6*50.8*6.4*7.9 | 6082-T6 |
| C102*80*10 | 6082-T6 |
| C127*50.8*4 | 6082-T6 |
| C127*50.8*6.4*7.9 | 6082-T6 |
| C127*63.5*6.4*9.5 | 6082-T6 |
| C152.4*76.2*6.4*9.5 | 6082-T6 |
| C152.4*76.2*9.5*12.7 | 6082-T6 |
| CL203.2*76.2*9.5*12.7 | 6082-T6 |
We supply CCS BV,ABS,DNV,LR certified Marine grade 6082 T6 U Channel for ship building
