EN 10253-2 covers the technical delivery requirements for seamless and welded butt weld fittings made of non-alloy and alloy steels for use in pressure piping and pressure vessels at room temperature, elevated, or low temperatures. These fittings are designed for butt welding to pipes and flanges according to relevant EN and ISO standards.
EN 10253-2 Butt weld fittings standard is one of the standards developed by the European Committee for Standardization (CEN). It specifies the dimensions, materials and other relevant requirements for seamless and welded steel pipes and fittings, especially for seamless and welded steel pipes and fittings used for pressure applications.
It specifies: type of fittings ;
type A : Butt-welding fittings with reduced pressure factor ;
type B : Butt-welding fittings for use at full service pressure ;
We are professional manufacturer and exporter of EN 10253-2 Butt Weld Caps, supplying high-quality seamless and welded end caps for pressure piping and pressure vessel applications.
Our EN 10253-2 pipe caps are designed to seal the end of pipelines, ensuring reliable protection from internal pressure, corrosion, and external mechanical damage.
Product Overview
Standard: EN 10253-2
Type: Caps
Manufacturing Process: Seamless / Welded
Size Range: DN15 – DN1200
Connection Type: Butt Weld Ends (BW)
EN 10253-2 is the standard specification for butt welding pipe fittings of non-alloy and ferritic alloy steels with specific inspection requirements. Typical materials include P235GH, P265GH, 16Mo3, 13CrMo4-5, P355NH, and L450QB, etc.

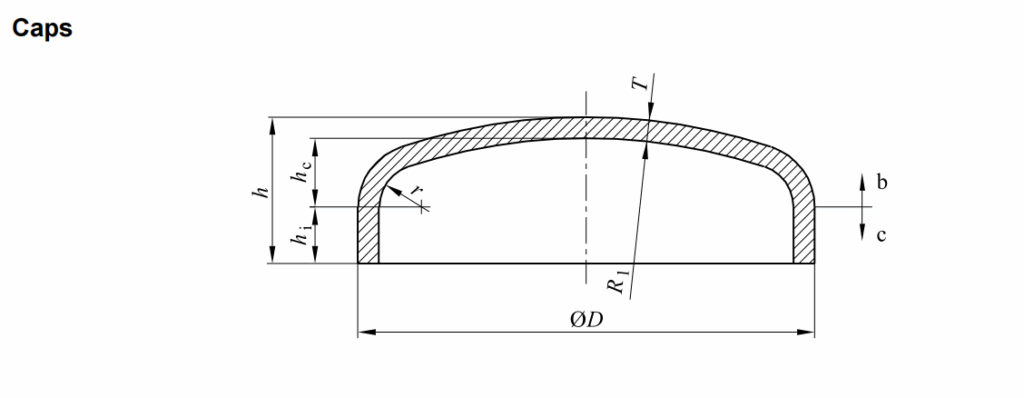

Dimension of EN 10253-2 Butt weld Caps
| R1 approximately equal to 0.8 D r approximately equal to 0.15 D | ||
| DN | D | h |
| 15 | 21.3 | 25 |
| 20 | 26.9 | 25 |
| 25 | 33.7 | 38 |
| 32 | 42.4 | 38 |
| 40 | 48.3 | 38 |
| 50 | 60.3 | 38 |
| 65 | 76.1 | 38 |
| 80 | 88.9 | 51 |
| 101.6 | 64 | |
| 100 | 114.3 | 64 |
| 125 | 139.7 | 76 |
| 150 | 168.3 | 89 |
| 200 | 219.1 | 102 |
| 250 | 273.1 | 127 |
| 300 | 323.9 | 152 |
| 350 | 355.6 | 165 |
| 400 | 406.4 | 178 |
| 450 | 457 | 203 |
| 500 | 508 | 229 |
| 550 | 559 | 254 |
| 600 | 610 | 267 |
| 650 | 660 | 267 |
| 700 | 711 | 267 for T ≤ 25 |
| 290 | ||
| 750 | 762 | 267 for T ≤ 20 |
| 310 | ||
| 800 | 813 | 267 for T ≤ 17.5 |
| 330 | ||
| 850 | 864 | 267 for T ≤ 14 |
| 350 | ||
| 900 | 914 | 267 for T ≤ 10 |
| 370 | ||
| 1000 | 965 | 305 for T ≤ 14.2 |
| 420 | ||
| 1050 | 1016 | 305 for T ≤ 13 |
| 405 | ||
| 1100 | 1067 | 343 for T ≤ 12 |
| 390 | ||
| 1150 | 1118 | 343 for T ≤ 11 |
| 375 | ||
| 1200 | 1168 | 343 for T ≤ 10 |
| 360 | ||
Download Dimensions of EN10253 butt welding Caps
Related Standards
- EN 10253-2: Non-alloy steel butt weld fittings
- EN 10253-4: Austenitic and austenitic-ferritic stainless steels
- ASME B16.9: Factory-made wrought butt weld fittings
- EN 10216 / EN 10217: Pipe standards for pressure purposes
Related Products
- EN 10253-2 Butt Weld Elbow
- EN 10253-2 Concentric Reducer
- EN 10253-2 Tee
- EN 1092-1 Flanges
- EN 10222 Forged Flanges
Order Example of our EN 10253-2 Tee
Product: EN 10253-2 Caps
Material: 16Mo3
Size: DN150
Wall Thickness: SCH40 / 5.0 mm
Type: Seamless
Quantity: 120 pcs
Standard: EN 10253-2
Inspection: EN 10204 3.1 Certificate
