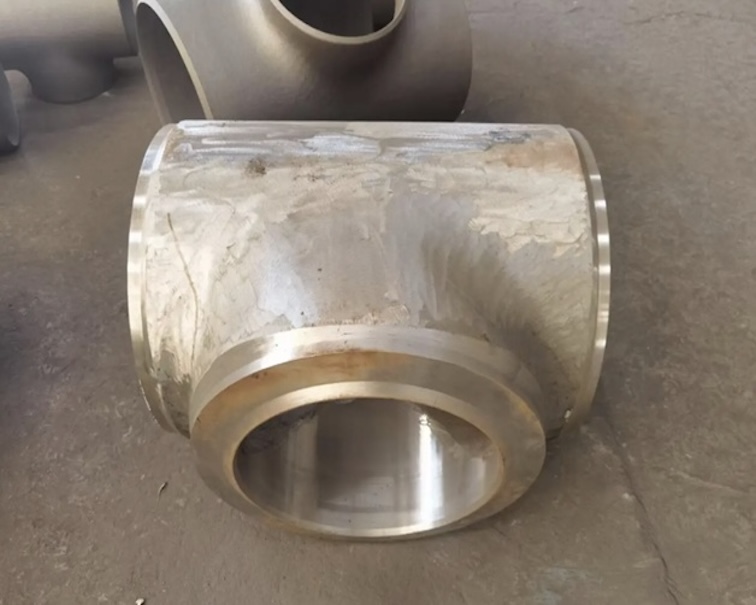

EN 10253-2 Butt Welding Tee Equal Reducing

EN 10253-2 covers the technical delivery requirements for seamless and welded butt weld fittings made of non-alloy and alloy steels for use in pressure piping and pressure vessels at room temperature, elevated, or low temperatures. These fittings are designed for butt welding to pipes and flanges according to relevant EN and ISO standards.

EN 10253-2 Butt weld fittings standard is one of the standards developed by the European Committee for Standardization (CEN). It specifies the dimensions, materials and other relevant requirements for seamless and welded steel pipes and fittings, especially for seamless and welded steel pipes and fittings used for pressure applications.

It specifies: type of fittings ;

 type A : Butt-welding fittings with reduced pressure factor ;

 type B : Butt-welding fittings for use at full service pressure ;

EN 10253-2 tees are designed to branch a pipeline flow or change its direction while maintaining uniform strength. They are widely used in industries such as oil & gas, chemical processing, power generation, and water treatment systems.

We are a trusted manufacturer and exporter of EN 10253-2 Butt Weld Tees, providing high-quality seamless and welded pipe fittings for pressure piping and pressure vessel applications. Our tees are produced according to EN 10253-2, ensuring precise dimensions, corrosion resistance, and long service life in high-pressure and high-temperature environments.

Product Overview

Standard: EN 10253-2
Type: Reducing Tee,Equal Tee
Manufacturing Process: Seamless / Welded
Size Range: DN15 – DN1200
Connection Type: Butt Weld Ends (BW)

EN 10253-2 is the standard specification for butt welding pipe fittings of non-alloy and ferritic alloy steels with specific inspection requirements. Typical materials include P235GH, P265GH, 16Mo3, 13CrMo4-5, P355NH, and L450QB, etc.

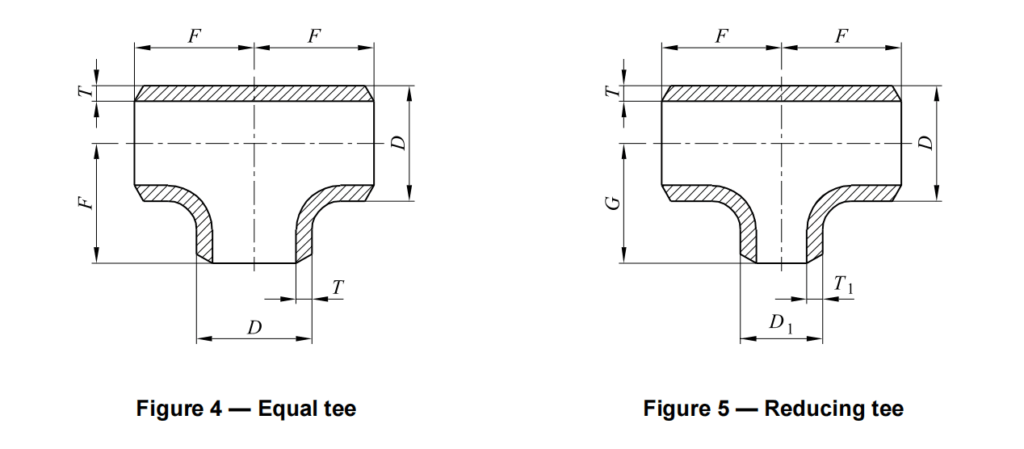

Dimension of EN 10253-2 Equal Tee

DN	D	F
15	21,3	25
20	26,9	29
25	33,7	38
32	42,4	48
40	48,3	57
50	60,3	64
65	76,1	76
80	88,9	86
90	101,6	95
100	114,3	105
125	139,7	124
150	168,3	143
200	219,1	178
250	273	216
300	323,9	254
350	355,6	279
400	406,4	305
450	457	343
500	508	381
550	559	419
600	610	432
650	660	495
700	711	521
750	762	559
800	813	597
850	864	635
900	914	673
1 000	1 016	749
1 050	1 067	762 a
1 100	1 118	813 a
1 150	1 166	851 a
1 200	1 219	889 a
a For these dimensions, the length of the outlet branch is not equal to the length of the run F. The applicable values for the length of the outlet branch are respectively : 711 for DN 1050, 762 for DN 1100, 800 for DN 1150 and 838 for DN 1200.

Dimension of EN 10253-2 Reducing Tee

Side D			Side D1
DN	D		DN1		D1	F	G
20	26,9		15		21,3	29	29
25	33,7		15		21,3	38	38
			20		26,9
32	42,4		15		21,3	48	48
			20		26,9
			25		33,7
40	48,3		15		21,3	57	57
			20		26,9
			25		33,7
			32		42,4
50	60,3		20		26,9	64	44
			25		33,7		51
			32		42,4		57
			40		48,3		60
65	76,1		25		33,7	76	57
			32		42,4		64
			40		48,3		67
			50		60,3		70
80	88,9		32		42,4	86	70
			40		48,4		73
			50		60,3		76
			65		76,1		83
100	114,3		40		48,3	105	86
			50		60,3		89
			65		76,1		95
			80		88,9		98
125	139,7		50		60,3 76,1 88,9 114,3	124	105
			65				108
			80				111
			100				117
150	168,3		65		76,1	143	121
			80		88,9		124
			100		114,3		130
			125		139,7		137
200	219,1		100		114,3	178	156
			125		139,7 168,3		162
			150				168
250	273,1		100		114,3	216	184
			125		139,7		191
			150		168,3		194
			200		219,1		203
300	323,9		150		168,3	254	219
			200		219,1		229
			250		273		241
350	355,6		150		168,3	279	238
			200		219,1		248
			250		273		257
			300		323,9		270
400	406,4		150		168,3	305	264
			200		219,1		273
			250		273		283
			300		323,9		295
			350		355,6		305
450	457		200		219,1	343	298
			250		273		308
			300		323,9		321
			350		355,6		330
			400		406,4		330
500	508		250		273	381	333
			300		323,9		346
			400		406,4		356
			450		457,0		368
550	559		250		273	419	359
			300		323,9		371
			400		406,4		381
			500		508,0		406
600	610		250		273	432	384
			300		323,9		397
			400		406,4		406
			500		508,0		432
650	660		300		323,9	495	422
			350		355,6		432
			400		406,4		432
			500		508		457
700	711		300		323,9	521	448
			400		406,4		457
			500		508,0		483
			600		610,0		508
750	762		400		406,4	559	483
			500		508,0		508
			600		610,0		533
800	813		400		406,4	602	508
			500		508,0		533
			600		610,0		559
			700		711,0		572
850	864		400		406,4	635	533
			500		508,0		559
			600		610,0		584
			700		711,0		597
900	914		400		406,4	673	559
			500		508,0		584
			600		610,0		610
			700		711,0		622
			800		813,0		648
1 000	1 016		600		610,0	749	660
			700		711,0		673
			800		813,0		711
			900		914,0		737
1 050	1 067		600		610,0	762	660
			700		711,0		698
			800		813,0		711
			900		914,0		711
1 100	1 118		600		610,0	813	698
			700		711,0		698
			800		813,0		711
			900		914		724
1 200	1 219		700		711,0	889	762
			800		813,0		787
			900		914,0		787
			1 000		1 016,0		813

Download Dimensions of EN10253 butt welding Tee

Related Standards

• EN 10253-2: Non-alloy steel butt weld fittings
• EN 10253-4: Austenitic and austenitic-ferritic stainless steels
• ASME B16.9: Factory-made wrought butt weld fittings
• EN 10216 / EN 10217: Pipe standards for pressure purposes

Related Products

• EN 10253-2 Butt Weld Elbow
• EN 10253-2 Concentric Reducer
• EN 10253-2 End Cap
• EN 1092-1 Flanges
• EN 10222 Forged Flanges

Order Example of our EN 10253-2 Tee

Product: EN 10253-2 Equal Tee
Material: 16Mo3
Size: DN150
Wall Thickness: SCH40 / 5.0 mm
Type: Seamless
Quantity: 120 pcs
Standard: EN 10253-2
Inspection: EN 10204 3.1 Certificate
